0.75″ Carbon Fiber 90 Degree Tangent Tube Mount™ – 24″ Long
Original price was: $171.50.$97.99Current price is: $97.99.
- Buy with confidence, backed by quality.
- Peace of Mind with Every Purchase
- Online assistance, always just a message away.
- Control the delivery date and try to deliver it in the fastest time

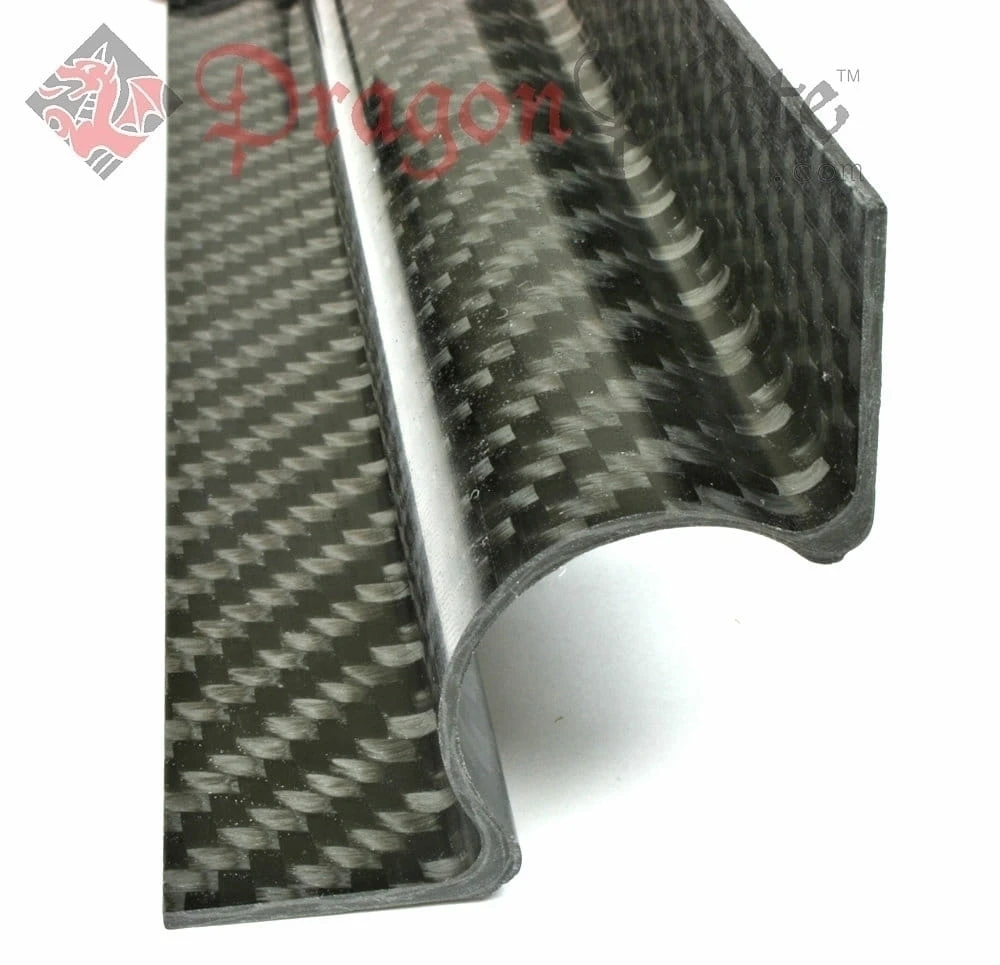

The 90 Degree Tangent Tube Mount™ makes it easy to attach a carbon fiber tube to plates to create inside 90 degree corners. The curved portion of the mount is bonded to a carbon fiber tube, and the flat sides are bonded/bolted to the plate.
These brackets are well suited for mounting carbon fiber tubes in robotic end effectors, electronic rack shelving, support plates for scientific equipment and many other applications.
| Thickness | 0.0625" |
|---|---|
| Leg Length | 3/4" |
| Length | 24" |
| Ply Orientation | Woven 0/90 |
| Max Temperature | 140 F |
| Fiber Modulus | Standard (33 Msi) |
| Finish | Semi-Gloss/Semi-Gloss |
| Composition | Solid CF (All Woven) |
| Approx. Weight | 0.239 lb |
| Approx. Density | 0.05 lb/in3 |
