0/90 Degree Carbon Fiber Twill Prepreg Sheet ~ 0.5″ X 24″ X 24″
Original price was: $399.00.$99.99Current price is: $99.99.
- Buy with confidence, backed by quality.
- Peace of Mind with Every Purchase
- Online assistance, always just a message away.
- Control the delivery date and try to deliver it in the fastest time

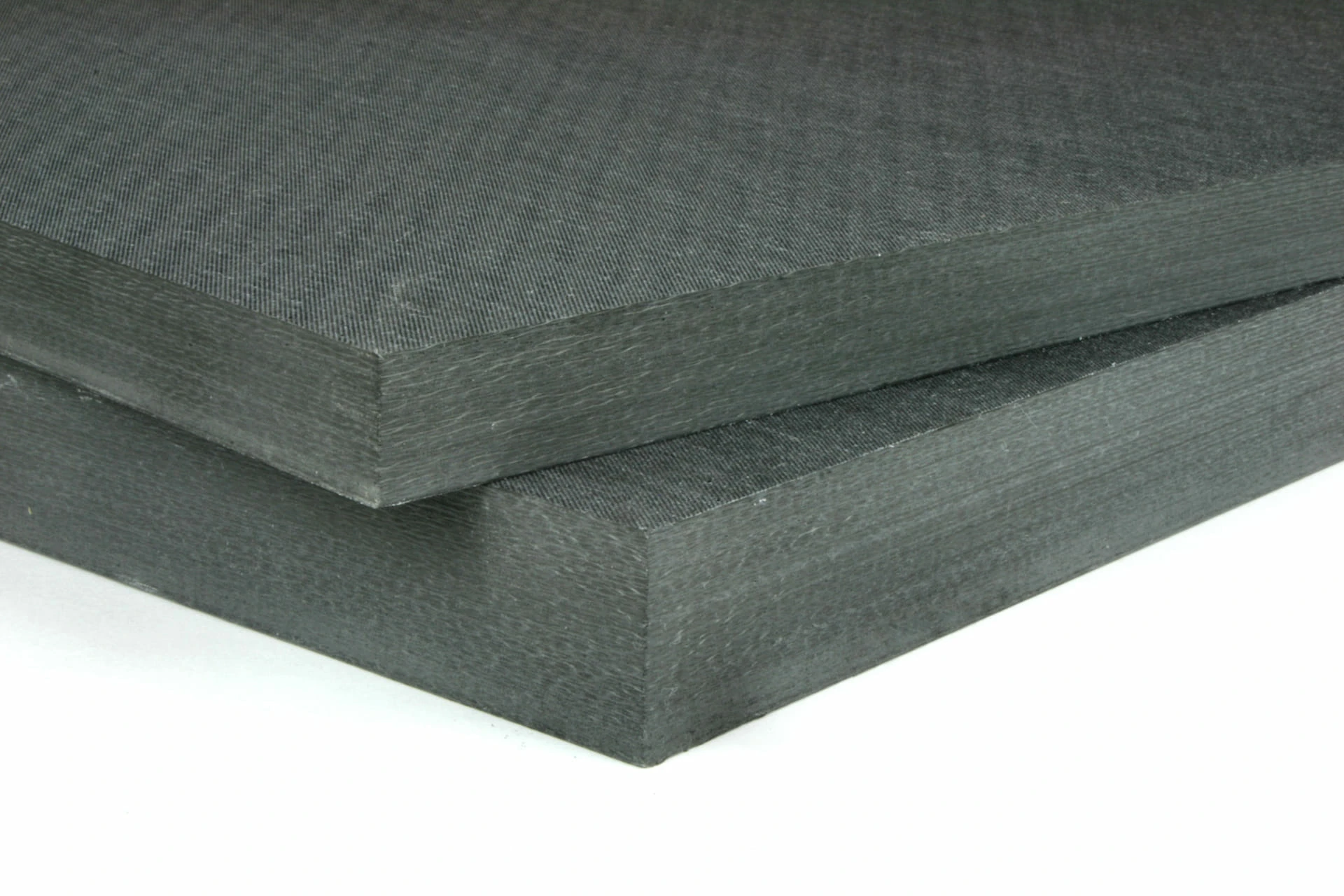

Dragonplate solid twill sheets comprise woven material throughout the entire thickness of the panel. Although not quite as stiff as our solid uni prepreg sheets, these solid twill woven sheets tend to be easier to machine, particularly when cutting small parts, details, and contours. These sheets will also be more impact resistant than uni-directional sheets and better resist local stresses, such as side and bearing loads.
| Sheet Size | 24" x 24" |
|---|---|
| Sheet Thickness | 1/2" |
| Ply Orientation | Woven 0/90 |
| Max Temperature | 250 F |
| Fiber Modulus | Standard (33 Msi) |
| Finish | Texture/Texture |
| Composition | Solid CF (All Woven) |
| Approx. Weight | 16.42 lb |
| Approx. Density | 0.057 lb/in3 |
