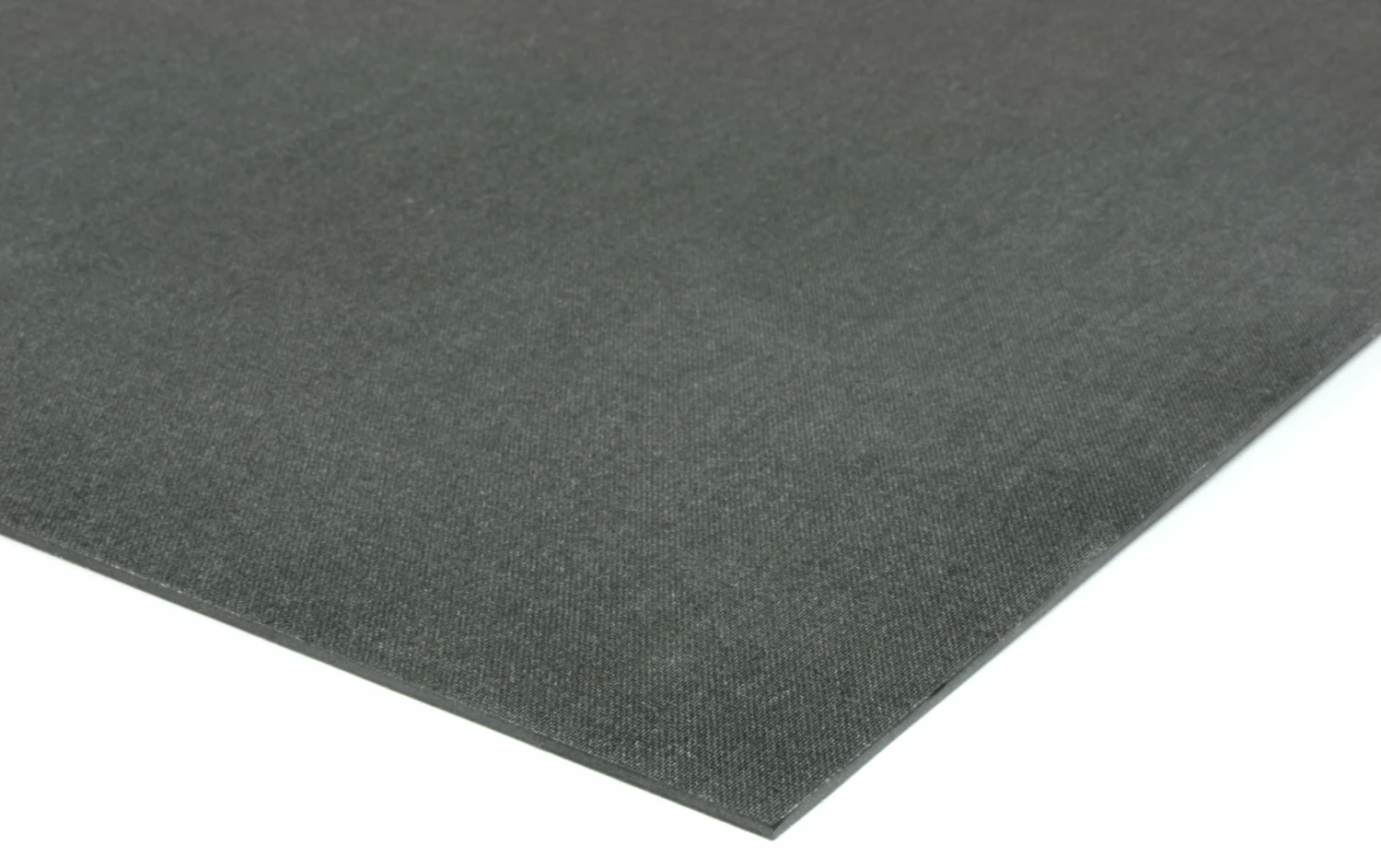

0/90 Degree Carbon Fiber Uni Sheet ~ 1mm X 6″ X 6″
Original price was: $24.94.$17.46Current price is: $17.46.
- Buy with confidence, backed by quality.
- Peace of Mind with Every Purchase
- Online assistance, always just a message away.
- Control the delivery date and try to deliver it in the fastest time
By alternating 0 and 90 degree plies, the stiffness of this sheet is identical along the two principal axes. Whereas 0 degree uni sheet has the highest stiffness along a single direction (at the expense of the perpendicular direction), the 0/90 degree uni sheet provides a good balance between mechanical property uniformity and cost. This option is suitable for applications where the loads may be along two directions.
As for all of our carbon fiber laminates, we recommend preparing the surfaces by lightly sanding before bonding or painting.
- Fiber: UTS 700 (34 MSI)
- Resin: NCT 304-1
- Fiber Volume: 55%
- Tg: 250° f
| Sheet Size | 06" x 06" |
|---|---|
| Sheet Thickness | 1mm |
| Ply Orientation | UD 0 and 90 |
| Max Temperature | 250 F |
| Fiber Modulus | Standard (33 Msi) |
| Finish | Texture/Texture |
| Composition | Solid CF (All Uni Directional) |
| Approx. Weight | 0.079 lb |
| Approx. Density | 0.056 lb/in3 |
