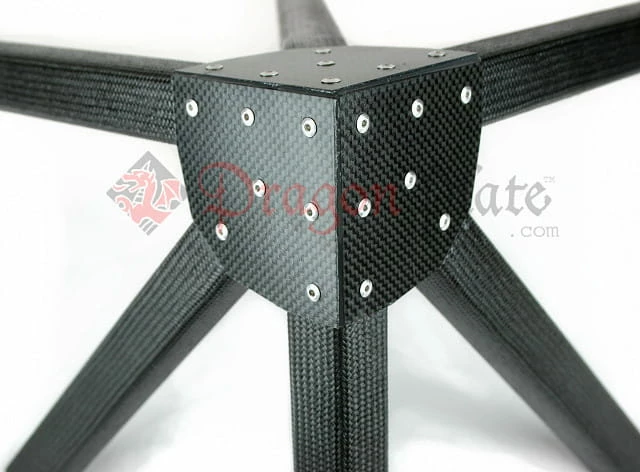

2″ Square Tube Carbon Fiber Gusset 3D 90° Corner W/45°

Original price was: $102.00.Current price is: $71.40.

SKU: ZHJHZ 1704853448 Categories: Square CF Tube Structures, Tube Connector Systems Tag: DragonPlate

Buy with confidence, backed by quality.
Peace of Mind with Every Purchase
Online assistance, always just a message away.
Control the delivery date and try to deliver it in the fastest time

Gussets are widely used to reinforce tube structures; however they are commonly made from heavy materials. Our gusset kits allow for an infinite combination of lightweight structures to be built with our square and rectangular tubing. Each gusset is a solid carbon fiber DragonPlate laminate. The laminate thickness is equal to our tubing wall thickness. The front face of the gusset has our low glare, scratch resistant matte finish, and the back has a peel ply finish that is ideal for bonding. Our gusset plates have been designed to work with our Scotchweld #2216 epoxy adhesive kit. This is an ideal structural adhesive with extremely high shear and peel strengths.

Each kit includes a set of three pre-drilled gussets and enough blind rivets to help locate and hold the gusset plates to the tubes during bonding.

Warning!!! These gussets are not designed with the intention for use without structural adhesive

Thickness	0.0625"
Material	Carbon Fiber
Gusset Geometry	3D
Compatible Tube Size	2" ID Square
Ply Orientation	Woven 0/90 and ±45
Max Temperature	140 F
Finish	Matte/Texture
Composition	Solid CF (All Woven)
Approx. Weight	1.550 oz/Per Gusset
