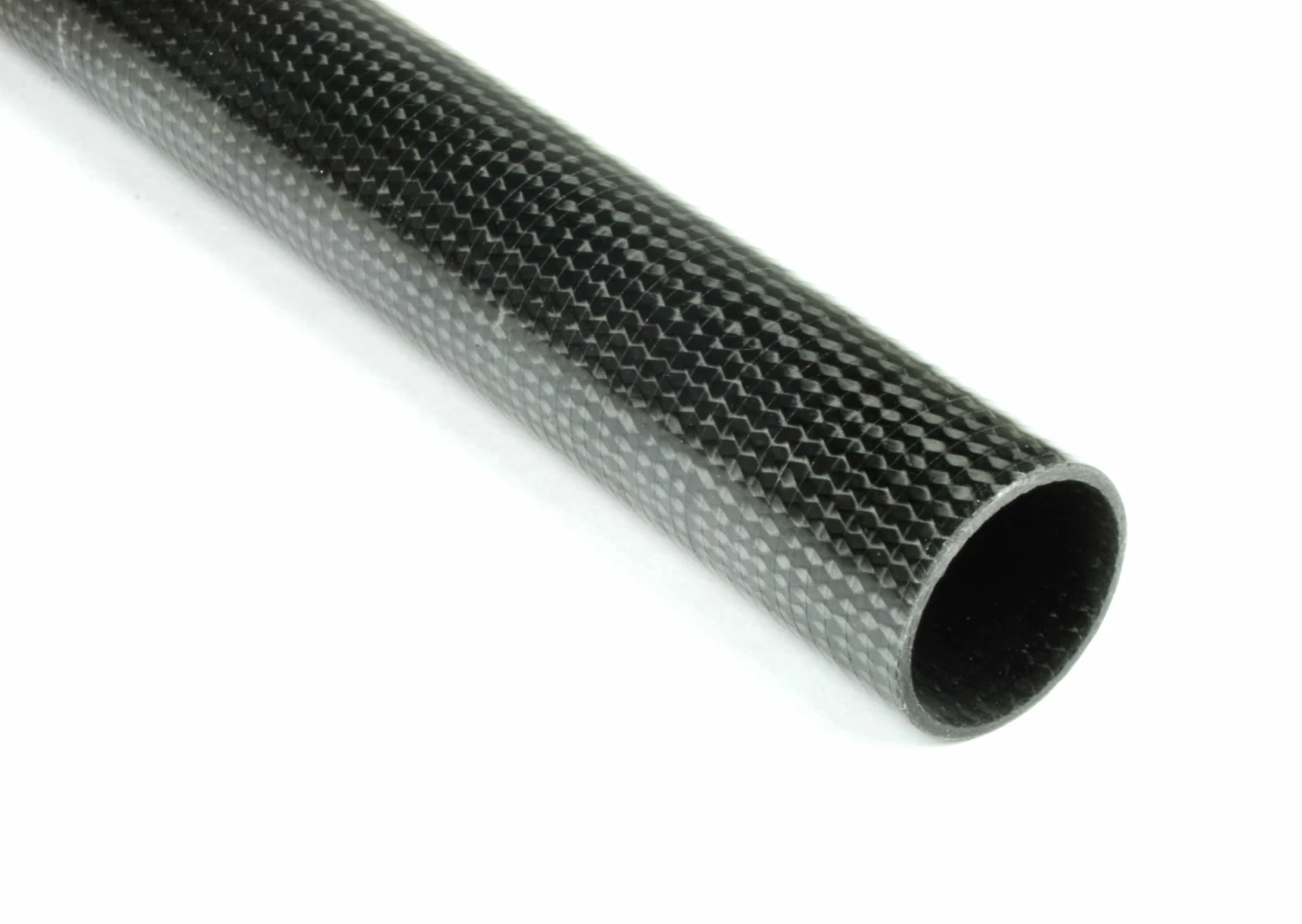

Axially Optimized Braided Carbon Fiber Tube ~ 1″ ID X 96″

Original price was: $204.25.Current price is: $97.99.

SKU: ZHJHZ 1704856705 Categories: Braided Carbon Fiber and Kevlar Round Tubes, Carbon Fiber Tubes Tag: DragonPlate

Buy with confidence, backed by quality.
Peace of Mind with Every Purchase
Online assistance, always just a message away.
Control the delivery date and try to deliver it in the fastest time

Dragonplate axially optimized carbon fiber braided tubes are a high strength, high stiffness extension of our standard braided tube line of products. Combining the best qualities of our standard braided tubes with the rigidity of roll-wrapped uni-directional tubing, the axially optimized braided tubes have a high angle braid and additional uni-directional carbon fiber for maximum bending stiffness, yet maintain the torsional rigidity and robustness that make Dragonplate braided tubes an excellent option for many applications. These tubes are specifically made for maximum strength when used with our patent pending modular connector systems to construct disassemblable frames and other structures. And the beautiful braided gloss finish is distinctively unique amongst carbon fiber tubes. Wall thickness is approximately .060″. UV resistant.

Length	96"
Wall Thickness	0.06"
Shape	Round
Inner Diameter	1"
Outside Diameter	1.12"
Tube Finish	Gloss
Ply Orientation	Braided ±60 and UD 0
Max Temperature	140 F
Fiber Modulus	Standard (33 Msi)
Composition	Solid CF (Woven and Uni Directional)
Approx. Weight	1.11 lb
Approx. Density	0.057 lb/in3
