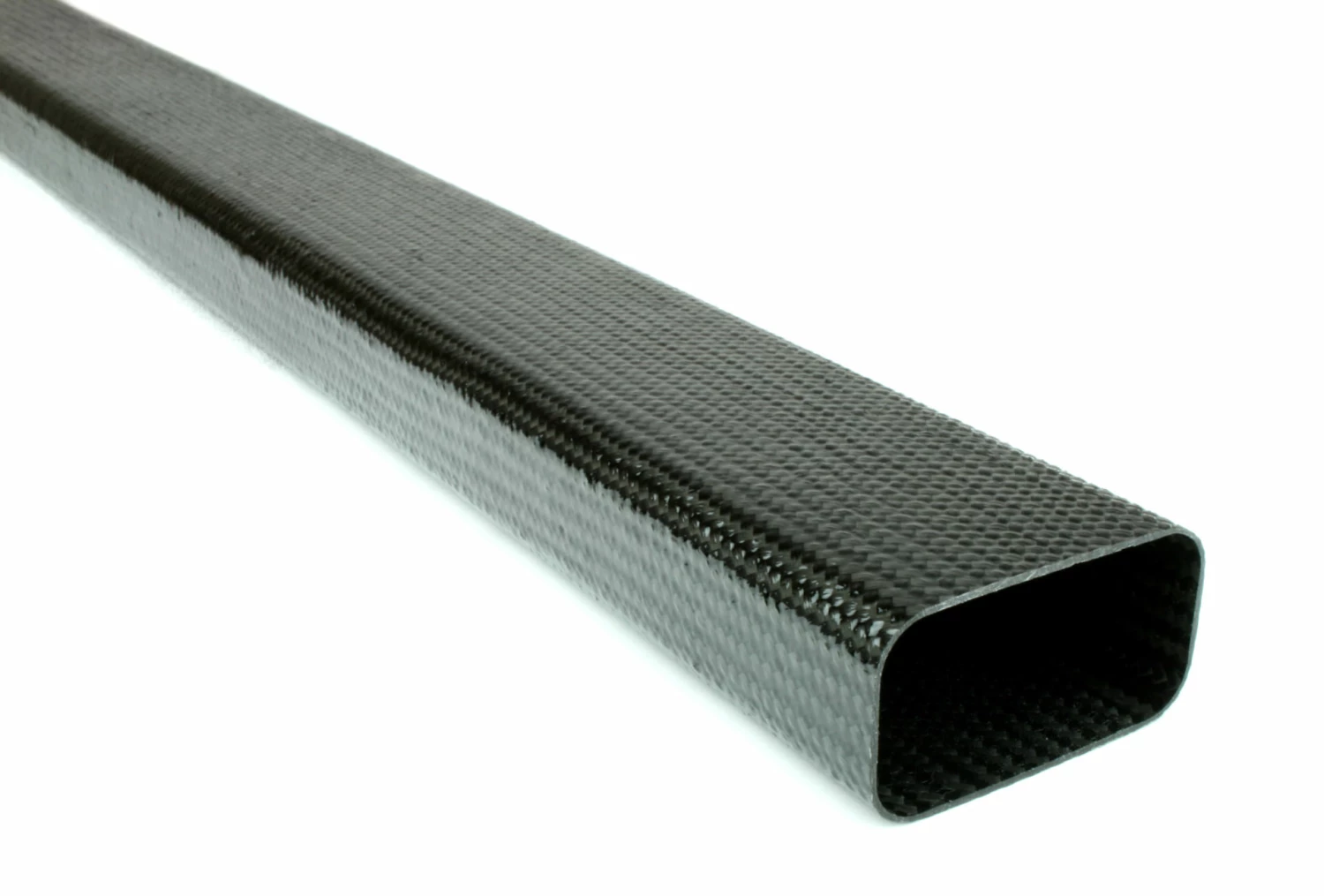

Braided Carbon Fiber Rectangular Tubing ~ 2″ X 1″ X 24″

Name: Diverse Styles in Braided Carbon Fiber Rectangular Tubing ~ 2" X 1" X 24" Add Elegance to Any Outfit.
SKU: ZHJHZ 1704857452
Price: 53.20 USD
Availability: InStock

Original price was: $76.00.Current price is: $53.20.

Tube Options

Clear

SKU: ZHJHZ 1704857452 Categories: Braided Carbon Fiber Square/Rectangular Tubes, Carbon Fiber Tubes Tag: DragonPlate

Buy with confidence, backed by quality.
Peace of Mind with Every Purchase
Online assistance, always just a message away.
Control the delivery date and try to deliver it in the fastest time

This tubing is comprised of Carbon Fiber Braid and Unidirectional Fabrics. This product is ideal for building light weight frames and structures such as trusses. Our Carbon Fiber tubing has been engineered to be much stronger under torsional and side loading than pultruded tubing. Our carbon fiber tubing is also significantly lighter than pultruded tubing. Our carbon fiber large tube has been designed so that the unidirectional layers are captured, eliminating longitudinal cracking and splitting. The finish on this product is different from our other product lines.

The standard braided carbon fiber tubes show the natural finish of the carbon fiber braid with a wet shiny appearance.

To facilitate bonding we now offer textured braided carbon fiber, allowing for a more consistent attachment surface. This surface is also ideal for painting.

Don’t see exactly what you’re looking for? Contact us about custom thicknesses, sizes, and finished lengths.

Tube Options	.075" Wall, Natural Finish, .075" Wall, Textured Finish, .050" Wall, Natural Finish, .050" Wall, Textured Finish
Length	24"
Shape	Rectangle
Actual Inside Dimensions	0.990" x 1.980"
Ply Orientation	Braided ±45 and UD 0
Max Temperature	140 F
Fiber Modulus	Standard (33 Msi)
Composition	Solid CF (Woven and Uni Directional)
Approx. Weight	0.273 lb Std or 0.426 lb Uni
Approx. Density	0.042 lb/in3Std or 0.068 lb/in3UNI
