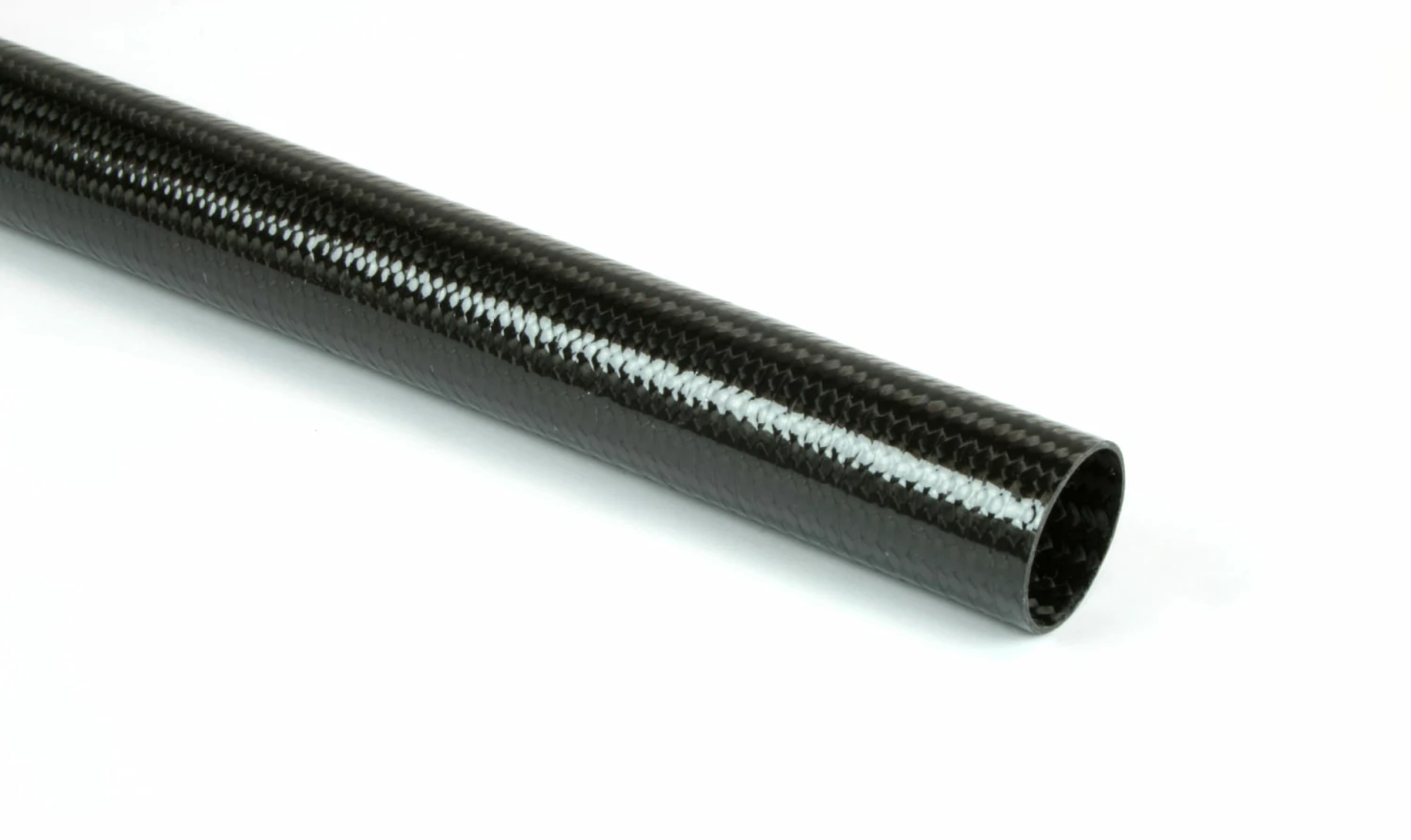

Braided Carbon Fiber Round Tubing ~ 1.75″ ID X 48″

Original price was: $102.25.Current price is: $71.58.

SKU: ZHJHZ 1704856937 Categories: Braided Carbon Fiber and Kevlar Round Tubes, Carbon Fiber Tubes Tag: DragonPlate

Buy with confidence, backed by quality.
Peace of Mind with Every Purchase
Online assistance, always just a message away.
Control the delivery date and try to deliver it in the fastest time

This round tubing is comprised of Carbon Fiber Braid and Unidirectional Fabrics. This product is ideal for building light weight frames and structures. Our Carbon Fiber round tubing has been engineered to be much stronger under torsional and side loading than pultruded tubing. Our tubing is also significantly lighter than pultruded tubing. Our carbon fiber round tube has been designed so that the unidirectional layers are captured in a sandwich structure, eliminating longitudinal cracking and splitting. Two options for finish on this tube are available. Natural, where the finish shows the texture of the carbon fiber braid with a wet shiny appearance and gloss, which has a flatter, more uniform glossy surface.

Don’t see exactly what you’re looking for? Contact us about custom thicknesses, sizes, and finished lengths.

Tube Finish	Natural, Gloss
Length	48"
Wall Thickness	0.04"
Shape	Round
Inner Diameter	1.75"
Outside Diameter	1.83"
Ply Orientation	Braided ±45 and UD 0
Max Temperature	140 F
Fiber Modulus	Standard (33 Msi)
Composition	Solid CF (Woven and Uni Directional)
Approx. Weight	0.475 lb
Approx. Density	0.044 lb/in3
