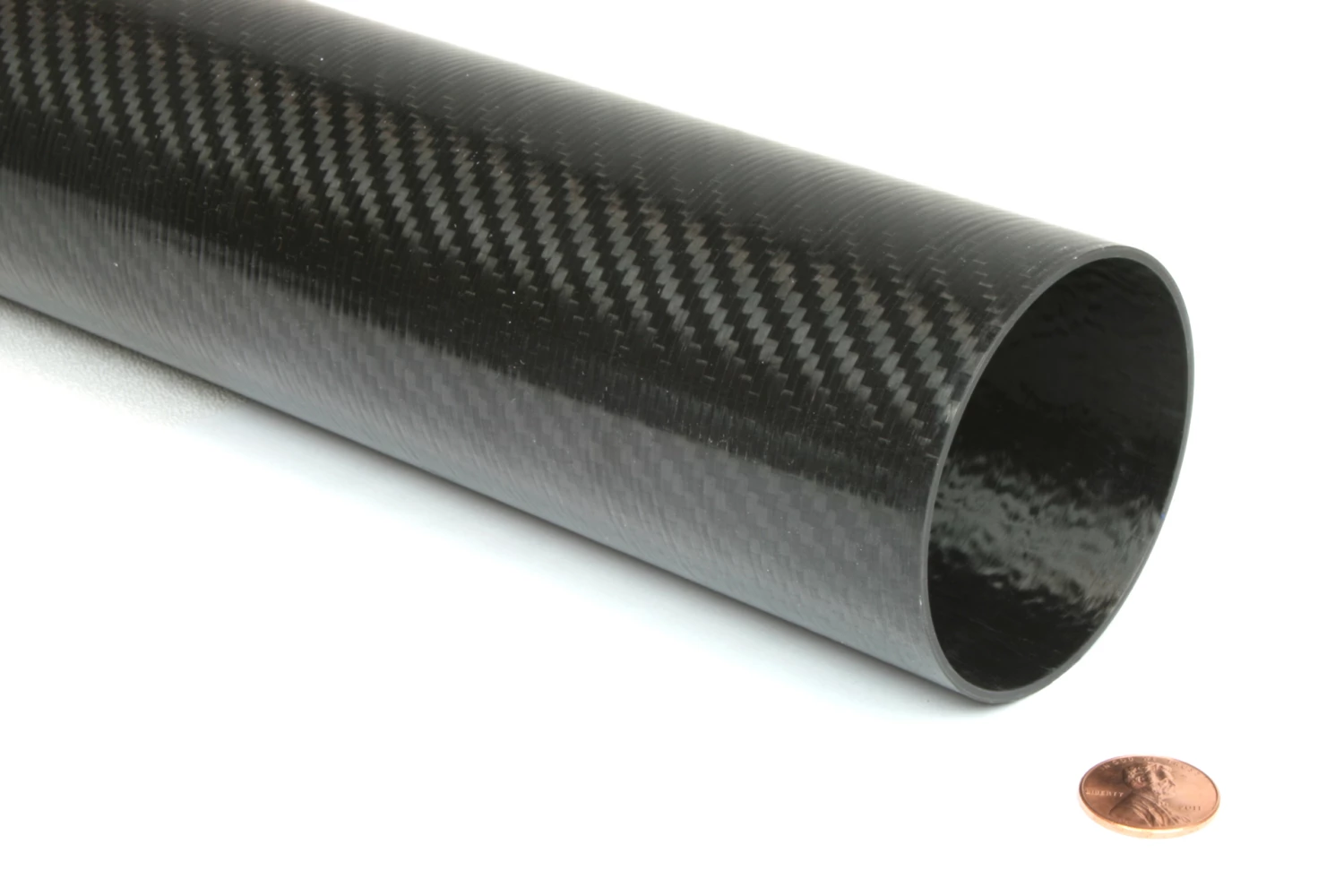

Carbon Fiber Roll Wrapped Telescoping Twill Tube ~ 2.375″ ID X 72″, Gloss Finish
Original price was: $280.02.$95.99Current price is: $95.99.
- Buy with confidence, backed by quality.
- Peace of Mind with Every Purchase
- Online assistance, always just a message away.
- Control the delivery date and try to deliver it in the fastest time
These twill carbon fiber telescoping tubes nest within one another and slide effortlessly. They are ideal for creating adjustable poles, robotics, factory automation, or any other application where compact storage and long extension length are necessary.
All of the tubes have a 0.045″ wall thickness, making them both rigid and crush resistant. Additional clamping force in the collet can be obtained by sanding the tube to remove the epoxy ridges.
- Fiber Modulus: 33 MSI
- Fiber UTS: 640 KSI
- Tg: 250 f
| Length | 72" |
|---|---|
| Wall Thickness | 0.045" |
| Shape | Round |
| Inner Diameter | 2.375" |
| Outside Diameter | 2.465" |
| Tube Finish | Gloss |
| Ply Orientation | Woven 0/90 |
| Max Temperature | 250 F |
| Fiber Modulus | Standard (33 Msi) |
| Composition | Solid CF (All Woven) |
| Approx. Weight | 1.404 lb |
| Approx. Density | 0.057 lb/in3 |
