Sale!

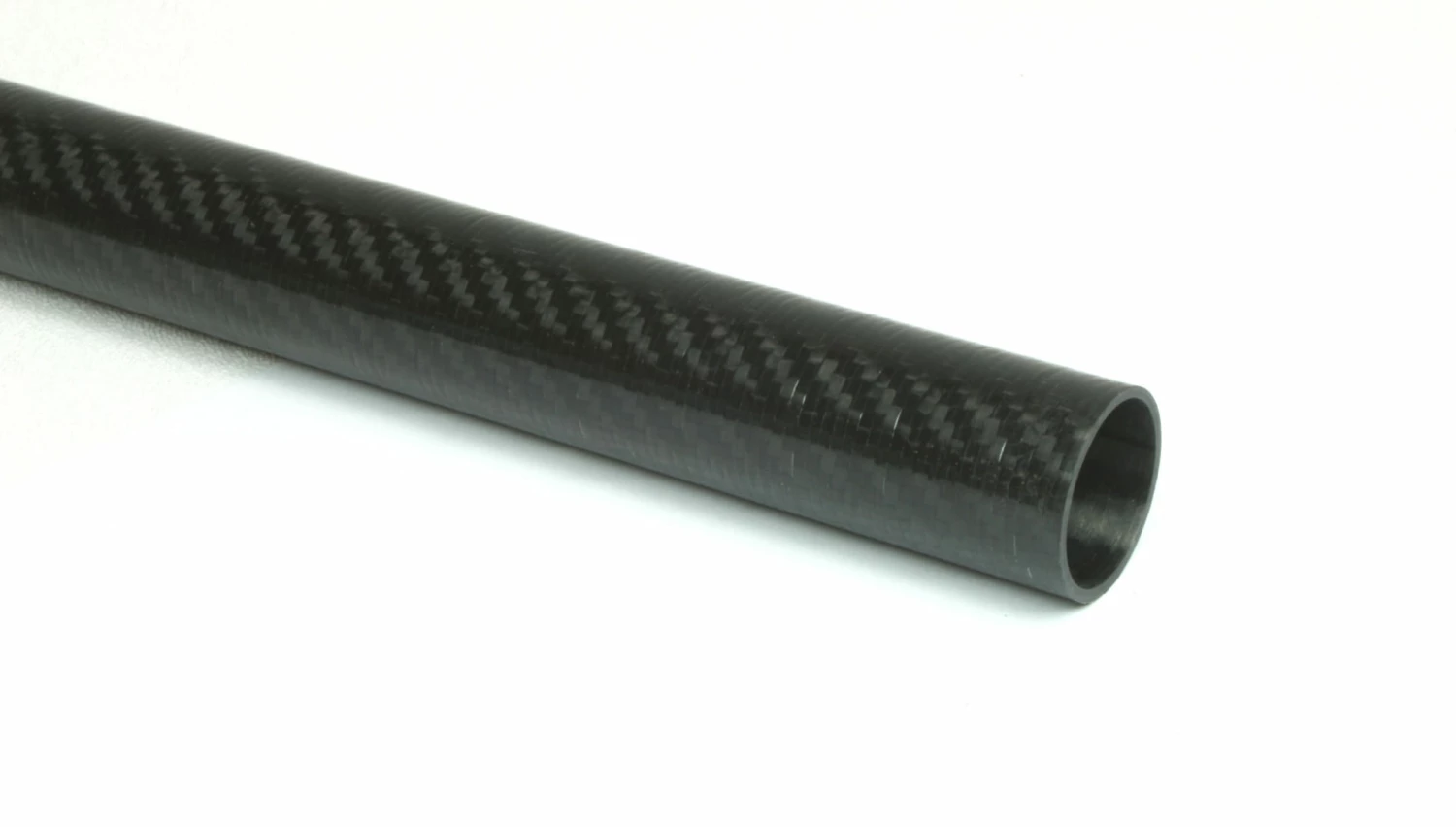

Carbon Fiber Roll Wrapped Twill Tube ~ 1.125″ ID X 48″, Gloss Finish

Original price was: $118.44.Current price is: $82.91.

SKU: ZHJHZ 1704852656 Categories: Carbon Fiber Rugged Telescoping Tubes, Carbon Fiber Telescoping Tubes Tag: DragonPlate

Buy with confidence, backed by quality.
Peace of Mind with Every Purchase
Online assistance, always just a message away.
Control the delivery date and try to deliver it in the fastest time

This beautiful roll wrapped carbon fiber tubing is fabricated from unidirectional carbon fiber with a twill outer layer. The unidirectional layers are oriented to provide high bending stiffness and axial strength. The outer layer provides a bias support layer in addition to an attractive appearance.

This product is ideal for building lightweight frames and structures, tubular vessels, poles, column supports, and any other application where low weight and high stiffness are essential, yet appearance is also important. Fabricated from prepreg fabrics and cello wrapped for a gloss finish.

Fiber Modulus: 33 MSI
Fiber UTS: 700 KSI
Tg: 250f

1.125″ ID x 1.25″ OD

Length	48"
Wall Thickness	0.0625"
Shape	Round
Inner Diameter	1.125"
Outside Diameter	1.25"
Tube Finish	Gloss
Ply Orientation	Woven 0/90 and UD 0
Max Temperature	250 F
Fiber Modulus	Standard (33 Msi)
Composition	Solid CF (Woven and Uni Directional)
Approx. Weight	0.635 lb
Approx. Density	0.057 lb/in3
