Carbon Fiber Roll Wrapped Twill Tube ~ 4″ ID X 24″, Gloss Finish
Original price was: $179.97.$99.99Current price is: $99.99.
- Buy with confidence, backed by quality.
- Peace of Mind with Every Purchase
- Online assistance, always just a message away.
- Control the delivery date and try to deliver it in the fastest time

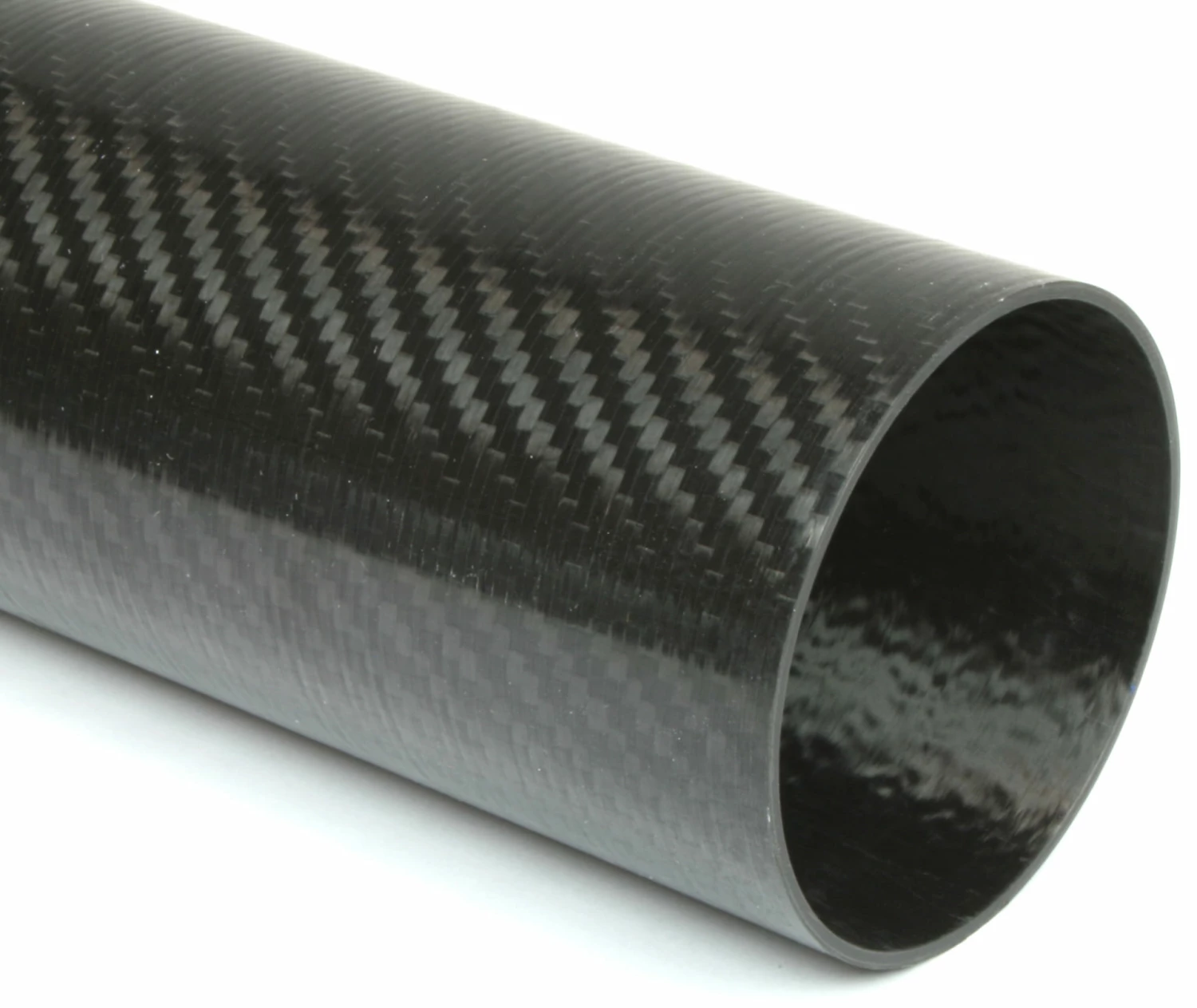

This beautiful roll wrapped carbon fiber tubing is fabricated from unidirectional carbon fiber with a twill outer layer. The unidirectional layers are oriented to provide high bending stiffness and axial strength. The outer layer provides a bias support layer in addition to an attractive appearance. This product is ideal for building lightweight frames and structures, tubular vessels, poles, column supports, and any other application where low weight and high stiffness are essential, yet appearance is also important. Fabricated from prepreg fabrics and cello wrapped for a gloss finish.
| Length | 24" |
|---|---|
| Wall Thickness | 0.0625" |
| Shape | Round |
| Inner Diameter | 4" |
| Outside Diameter | 4.125" |
| Tube Finish | Gloss |
| Ply Orientation | Woven 0/90 and UD 0 |
| Max Temperature | 250 F |
| Fiber Modulus | Standard (33 Msi) |
| Composition | Solid CF (Woven and Uni Directional) |
| Approx. Weight | 1.072 lb |
| Approx. Density | 0.057 lb/in3 |
