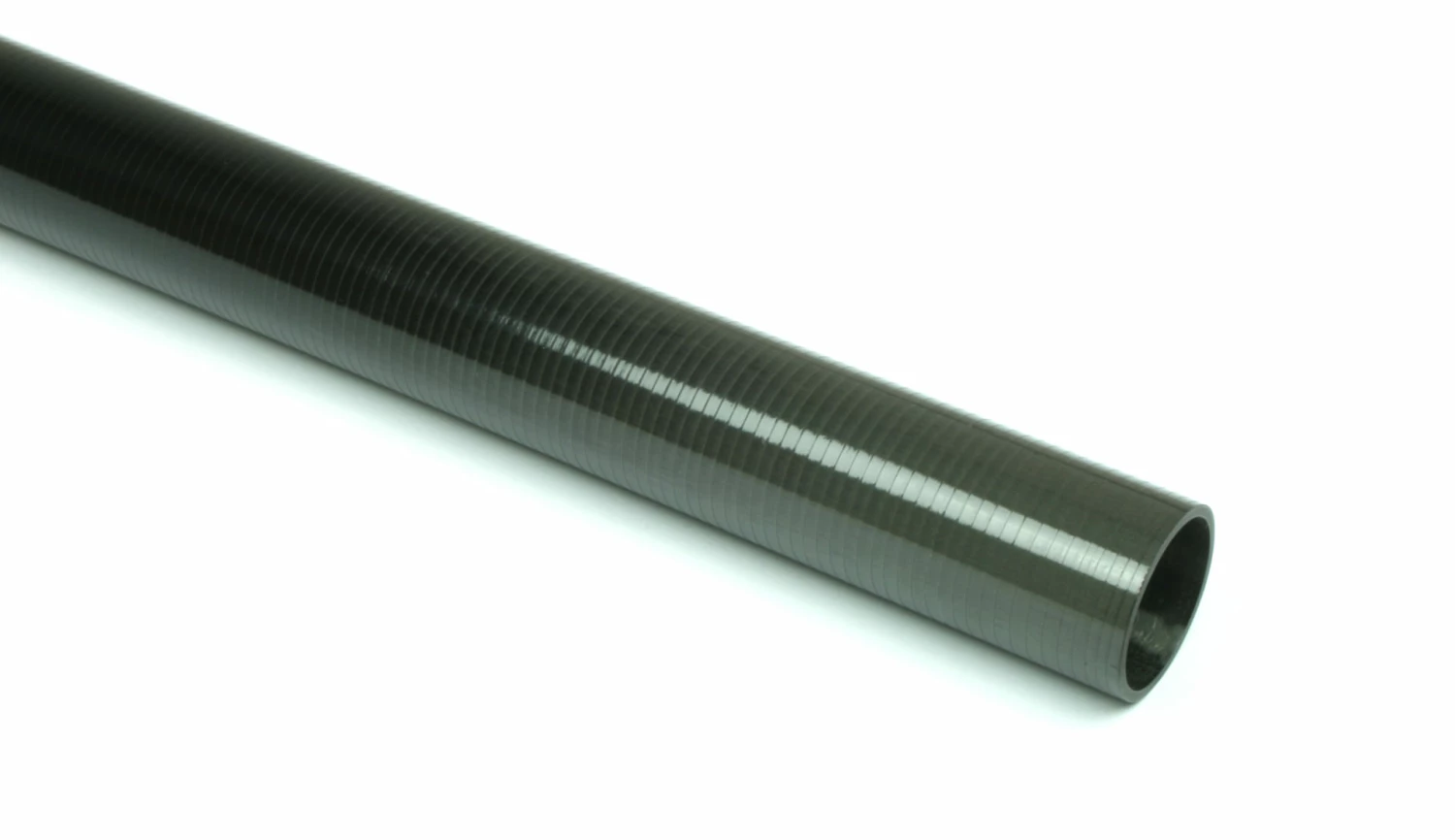

Carbon Fiber Roll Wrapped Uni Tube ~ 0.75″ ID X 24″, Gloss Finish

Original price was: $36.78.Current price is: $25.75.

SKU: ZHJHZ 1704852298 Categories: Carbon Fiber Standard Telescoping Tubes, Carbon Fiber Telescoping Tubes Tag: DragonPlate

Buy with confidence, backed by quality.
Peace of Mind with Every Purchase
Online assistance, always just a message away.
Control the delivery date and try to deliver it in the fastest time

This high strength to weight carbon fiber tubing is fabricated from unidirectional carbon fiber prepreg. The unidirectional layers are oriented to provide high bending stiffness and axial strength, as well as high hoop strength (resistance to crushing from a side load). This economical product is ideal for building lightweight frames and structures, tubular vessels, poles, column supports, and any other application where low weight and high stiffness are essential.

These tubes are made from standard modulus unidirectional prepreg, cello wrapped for a gloss finish.

SPECIFICATIONS

Fiber Modulus: 33 MSI
Fiber UTS: 700 KSI
Tg: 250 f

0.75″ ID x 0.045″ wall

Length	24"
Wall Thickness	0.045"
Shape	Round
Inner Diameter	0.75"
Outside Diameter	0.84"
Tube Finish	Gloss
Ply Orientation	Woven 0/90 and UD 0 and 90
Max Temperature	250 F
Fiber Modulus	Standard (33 Msi)
Composition	Solid CF (Woven and Uni Directional)
Approx. Weight	0.156 lb
Approx. Density	0.057 lb/in3
