Carbon Fiber Roll Wrapped Uni Tube ~ 2.5″ ID X 72″, Gloss Finish
Original price was: $249.02.$97.99Current price is: $97.99.
- Buy with confidence, backed by quality.
- Peace of Mind with Every Purchase
- Online assistance, always just a message away.
- Control the delivery date and try to deliver it in the fastest time

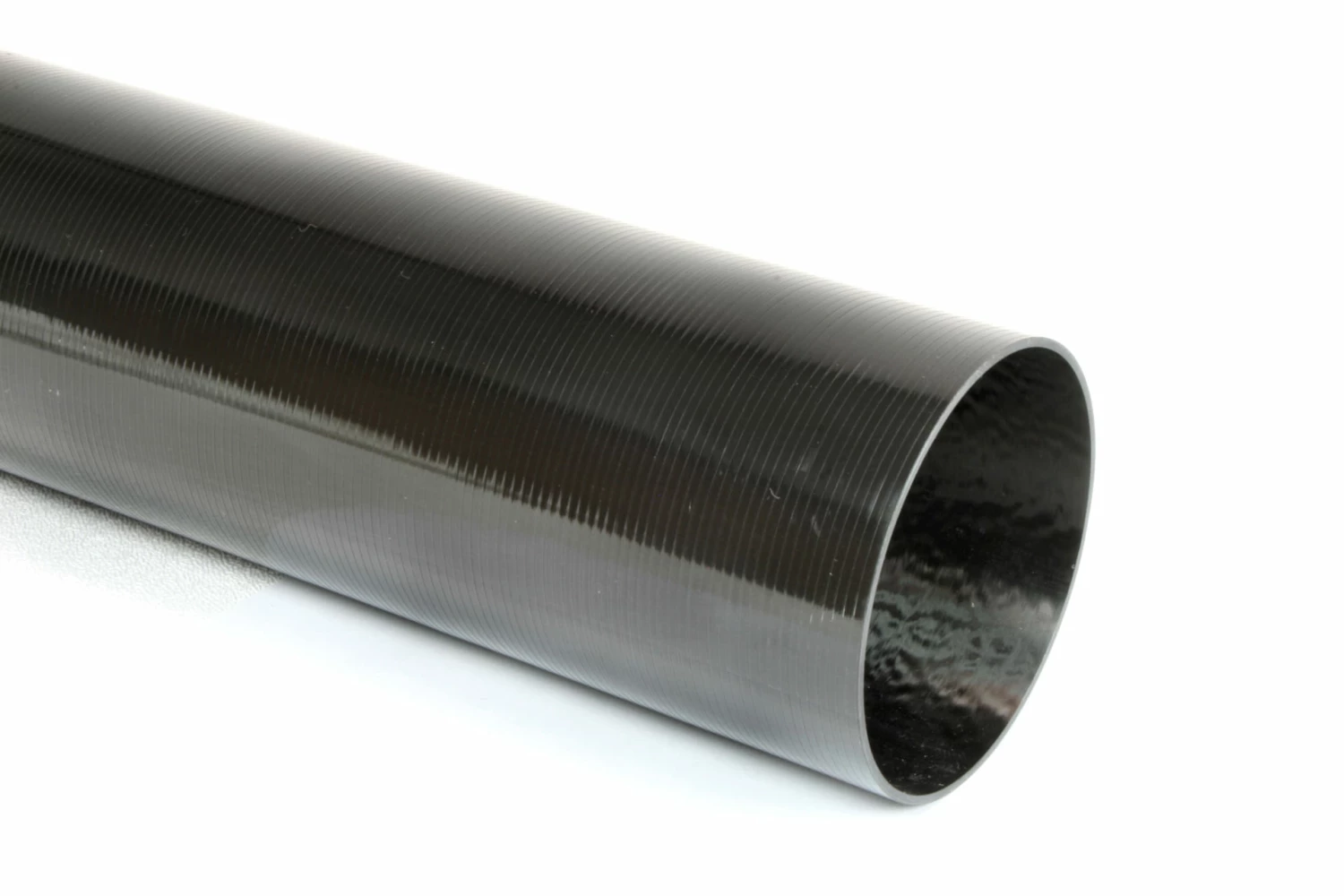

This high strength to weight carbon fiber tubing is fabricated from unidirectional carbon fiber prepreg. The unidirectional layers are oriented to provide high bending stiffness and axial strength, as well as high hoop strength (resistance to crushing from a side load). This economical product is ideal for building lightweight frames and structures, tubular vessels, poles, column supports, and any other application where low weight and high stiffness are essential. These tubes are made from standard modulus unidirectional prepreg, cello wrapped for a gloss finish. SPECIFICATIONSFiber Modulus: 33 MSI Fiber UTS: 700 KSI Tg: 250 f2.5″ ID x 0.045″ wall
| Length | 72" |
|---|---|
| Wall Thickness | 0.045" |
| Shape | Round |
| Inner Diameter | 2.5" |
| Outside Diameter | 2.59" |
| Tube Finish | Gloss |
| Ply Orientation | Woven 0/90 and UD 0 and 90 |
| Max Temperature | 250 F |
| Fiber Modulus | Standard (33 Msi) |
| Composition | Solid CF (Woven and Uni Directional) |
| Approx. Weight | 1.477 lb |
| Approx. Density | 0.057 lb/in3 |
