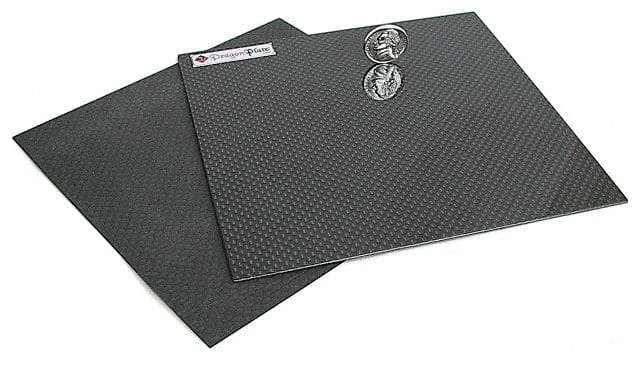

DragonPlate Carbon Fiber Birch Core ~ 1/16″ X 24″ X 48″
Original price was: $391.00.$98.99Current price is: $98.99.
- Buy with confidence, backed by quality.
- Peace of Mind with Every Purchase
- Online assistance, always just a message away.
- Control the delivery date and try to deliver it in the fastest time
Our fabrication process produces a carbon fiber birch plywood sandwich structure that is exceptionally flat, stable and lighter than a solid Carbon Fiber laminate sheet. Each laminated sheet has a symmetrical and balanced carbon fiber lay up schedule with varying core materials. The core materials vary (depending on thickness) from wood fiber to high quality birch plywood.
Ā
Each sheet is available in standard gloss, scratch resistant matte, or texture finish on one side, with a texture finish on the other side, creating an ideal bonding surface.Upon request, sheet can be cut into 2 pieces sized 24″ x 24″ with purchase. Additional face sheet options available. Contact us for details.
| Finish | Gloss, Matte, Textured |
|---|---|
| Add Face Sheet (one side) | Plain Weave, Twill Weave, Red Kevlar/Carbon, Red Kevlar, Blue Kevlar/Carbon, Yellow Kevlar/Carbon, Harness-Satin 4, Twill Narrow Weave |
| Sheet Size | 24" x 48" |
| Sheet Thickness | 1/16" |
| Core Material | Birch Plywood |
| Ply Orientation | Woven 0/90 and Ā±45 |
| Max Temperature | 140 F |
| Fiber Modulus | Standard (33 Msi) |
| Composition | CF (Woven) and Core |
| Approx. Weight | 3.455 lb |
| Approx. Density | 0.0029 lb/in2 |
