EconomyPlate Airex C70-40 .5″ Foam Core Carbon Fiber Sheet – 24″ X 24″

Original price was: $180.48.Current price is: $99.99.

SKU: ZHJHZ 1704855107 Categories: Carbon Fiber Foam Core, Carbon Fiber Sandwich Sheets with Core Tag: DragonPlate

Buy with confidence, backed by quality.
Peace of Mind with Every Purchase
Online assistance, always just a message away.
Control the delivery date and try to deliver it in the fastest time

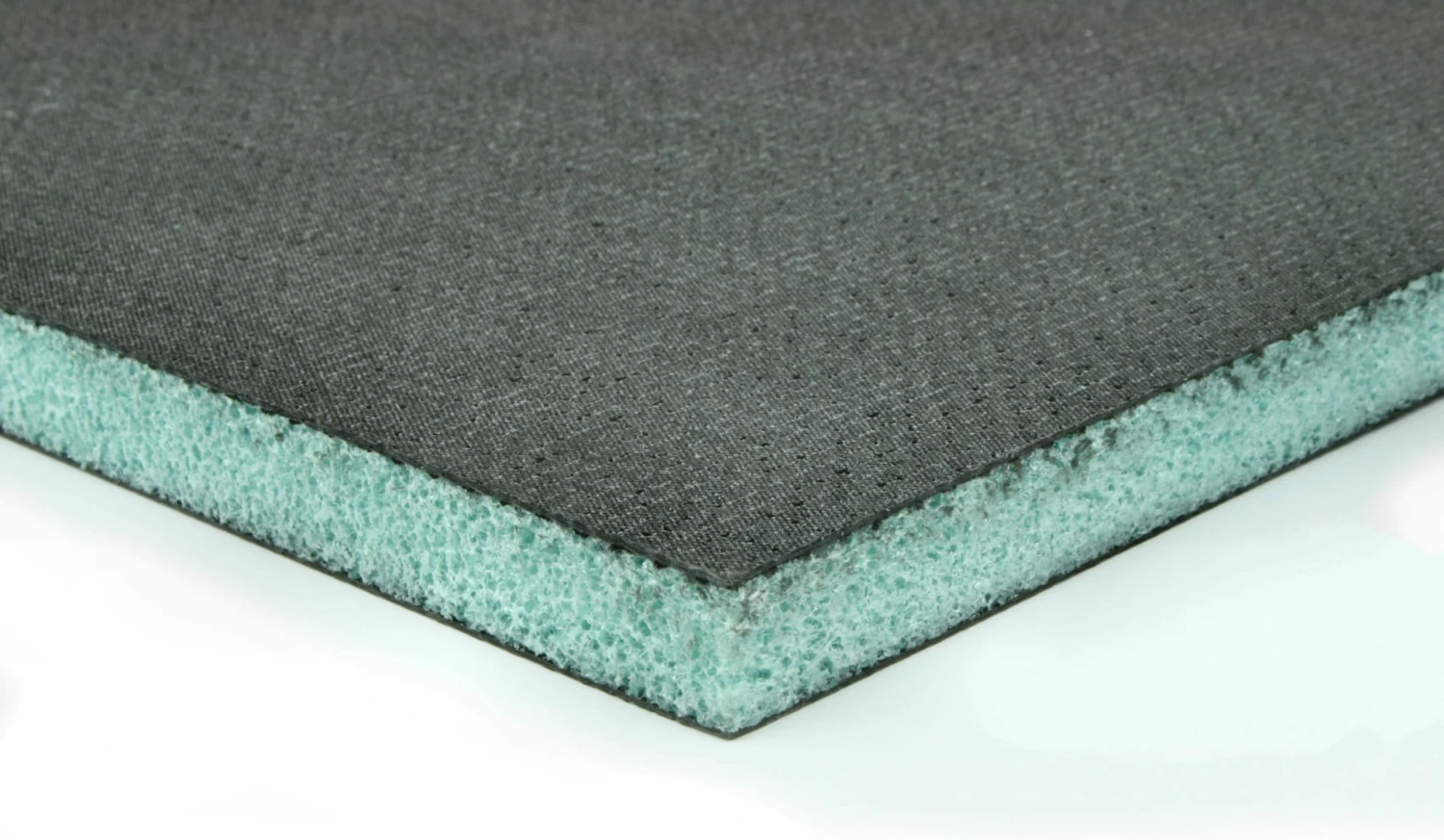

EconomyPlate carbon fiber sheets utilize a C70-40 Airex foam that is a unique closed cell, cross-linked polymer foam core. This is a lightweight structural foam that has good impact strength. While great for high strength applications which require a low panel weight, this is a carbon fiber foam core laminate that can resist crushing forces and supply an adequate mounting surface. The lay-up design is 0/90 orientation of carbon fiber on each side of a .5″ Airex foam core center. Two face sheet thickness options of .010″ or .030″ are available. Face sheet finish is texture on both sides for bonding to other surfaces. For foam specifications, please refer to the official Airex Data Sheet.

Face Sheet Thickness	.010" Thick, .030" Thick
Sheet Size	24" x 24"
Core Material	Gurit PVC40 Foam (Airex)
Ply Orientation	Woven 0/90
Max Temperature	140 F
Fiber Modulus	Standard (33 Msi)
Finish	Texture/Texture
Composition	CF (Woven) and Core
Approx. Weight	1.129 lb (3K) Or 2.198 lb (12K)
Approx. Density	0.0019 lb/in 2 (STD) Or 0.0037 lb/in 2 (UNI3)
