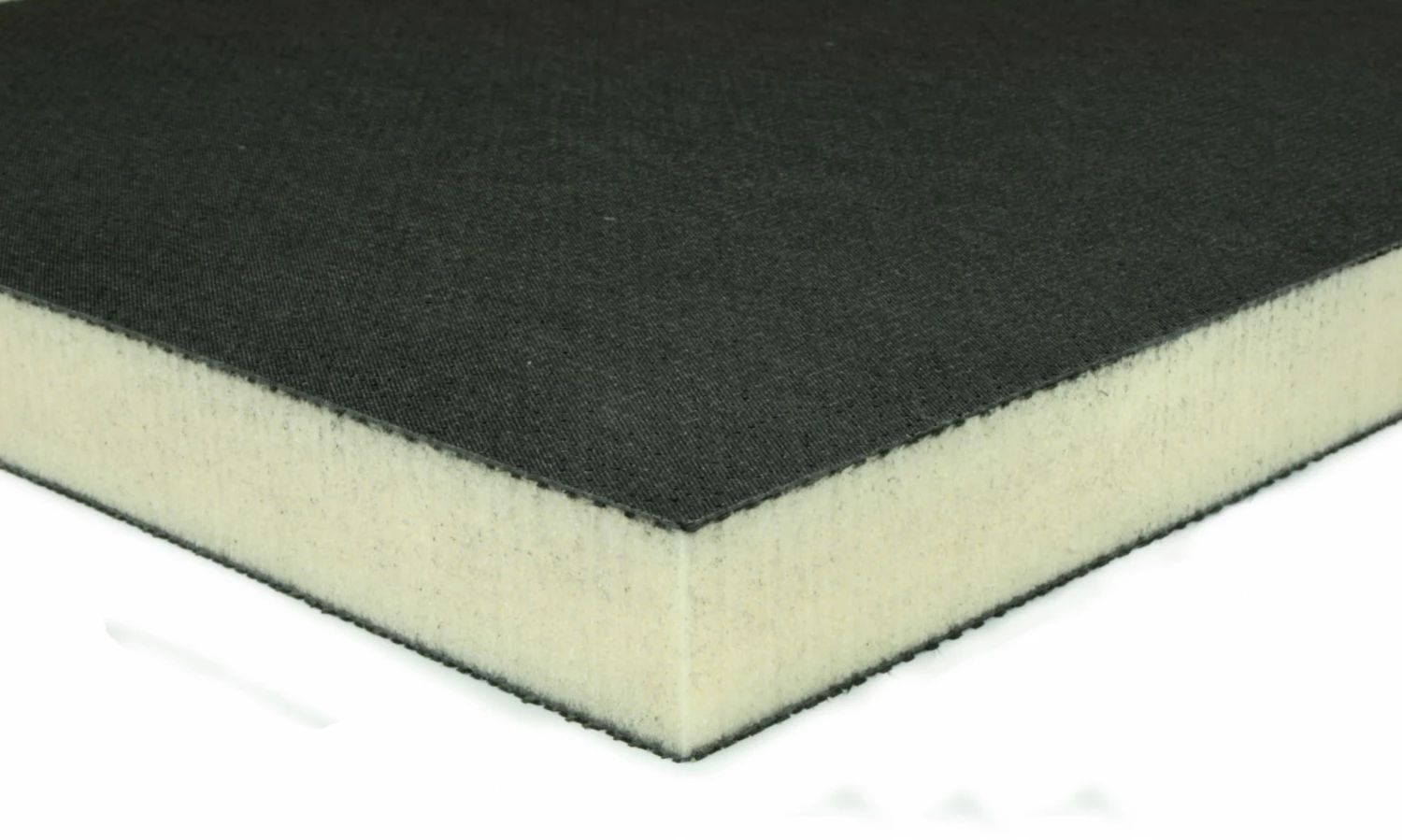

EconomyPlate Divinycell H100 1″ Foam Core Carbon Fiber Sheet – 6″ X 6″

Original price was: $34.13.Current price is: $23.89.

SKU: ZHJHZ 1704855259 Categories: Carbon Fiber Foam Core, Carbon Fiber Sandwich Sheets with Core Tag: DragonPlate

Buy with confidence, backed by quality.
Peace of Mind with Every Purchase
Online assistance, always just a message away.
Control the delivery date and try to deliver it in the fastest time

EconomyPlate Divinycell carbon fiber sheets utilize a Divinycell H100 high performance foam core. This is a medium density structural foam with very high strength to weight ratio. With very large strength properties, this carbon fiber foam core laminate is an excellent choice for heavier duty applications where lighter density foams struggle. Divinycell H100 is also an excellent damage tolerant foam and is ideal for impact applications. The lay-up design is 0/90 orientation of carbon fiber on each side of a 1″ Divinycell foam core center. Two face sheet thickness options of .010″ or .030″ are available. Face sheet finish is texture on both sides for bonding to other surfaces. For foam specifications, please refer to the official Divinycell Foam Data Sheet.

Face Sheet Thickness	.010" Thick, .030" Thick
Sheet Size	06" x 06"
Core Material	Divinycell Foam
Ply Orientation	Woven 0/90
Max Temperature	140 F
Fiber Modulus	Standard (33 Msi)
Finish	Texture/Texture
Composition	CF (Woven) and Core
Approx. Weight	0.18 lb (3K) Or 0.235 lb (12K)
Approx. Density	0.0049 lb/in 2 (STD) Or 0.0064 lb/in 2 (UNI3)
