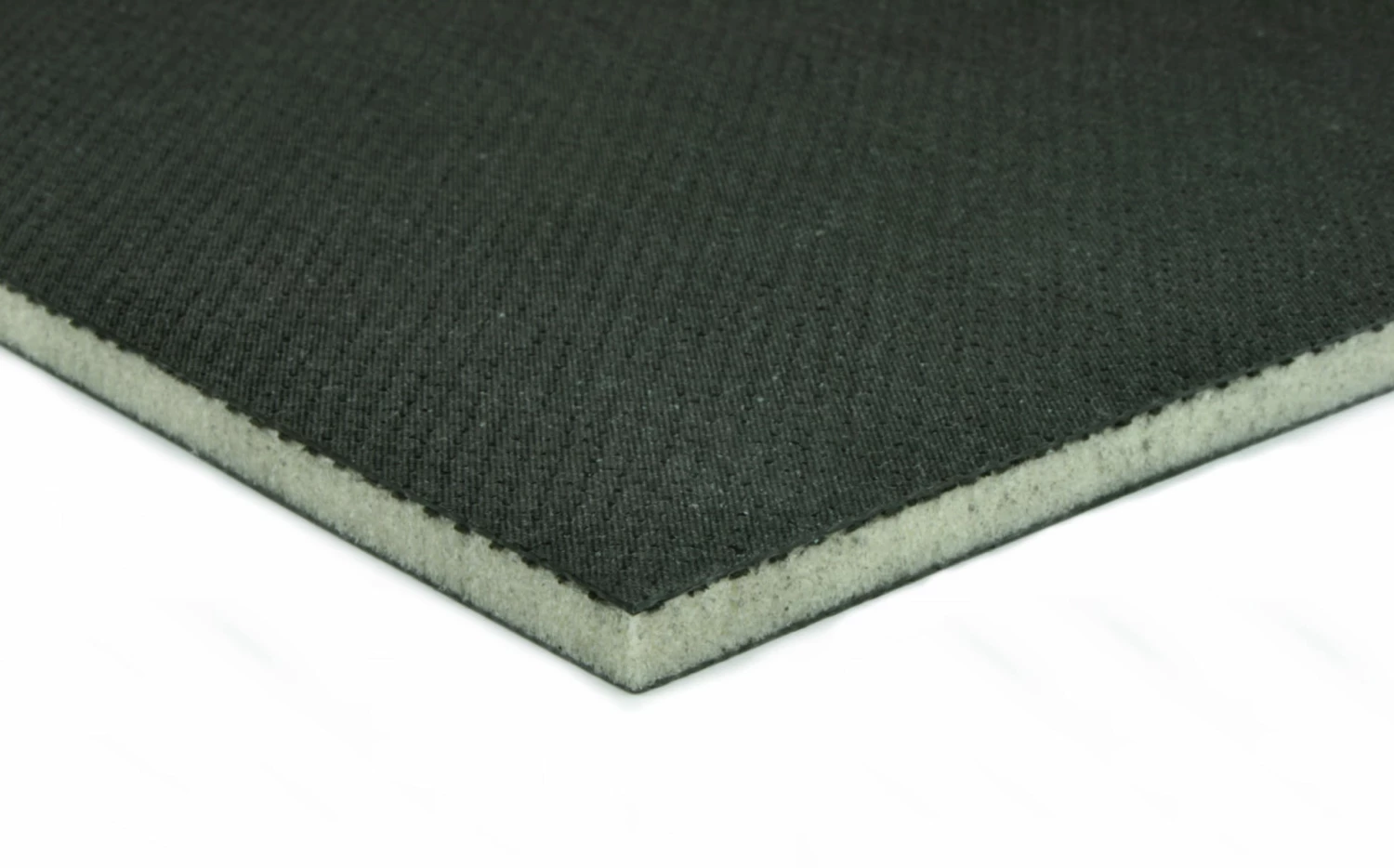

EconomyPlate Divinycell carbon fiber sheets utilize a Divinycell H100 high performance foam core. This is a medium density structural foam with very high strength to weight ratio. With very large strength properties, this carbon fiber foam core laminate is an excellent choice for heavier duty applications where lighter density foams struggle. Divinycell H100 is also an excellent damage tolerant foam and is ideal for impact applications. The lay-up design is 0/90 orientation of carbon fiber on each side of a .25″ Divinycell foam core center. Two face sheet thickness options of .010″ or .030″ are available. Face sheet finish is texture on both sides for bonding to other surfaces. For foam specifications, please refer to the official Divinycell Foam Data Sheet.
EconomyPlate Divinycell H100 .25″ Foam Core Carbon Fiber Sheet – 12″ X 24″
$150.85 Original price was: $150.85.$95.99Current price is: $95.99.
- Buy with confidence, backed by quality.
- Peace of Mind with Every Purchase
- Online assistance, always just a message away.
- Control the delivery date and try to deliver it in the fastest time

| Face Sheet Thickness | .010" Thick, .030" Thick |
|---|---|
| Sheet Size | 12" x 24" |
| Core Material | Divinycell Foam |
| Ply Orientation | Woven 0/90 |
| Max Temperature | 140 F |
| Fiber Modulus | Standard (33 Msi) |
| Finish | Texture/Texture |
| Composition | CF (Woven) and Core |
| Approx. Weight | 0.591 lb (3K) Or 1.094 lb (12K) |
| Approx. Density | 0.0020 lb/in 2 (STD) Or 0.0037 lb/in 2 (UNI3) |
