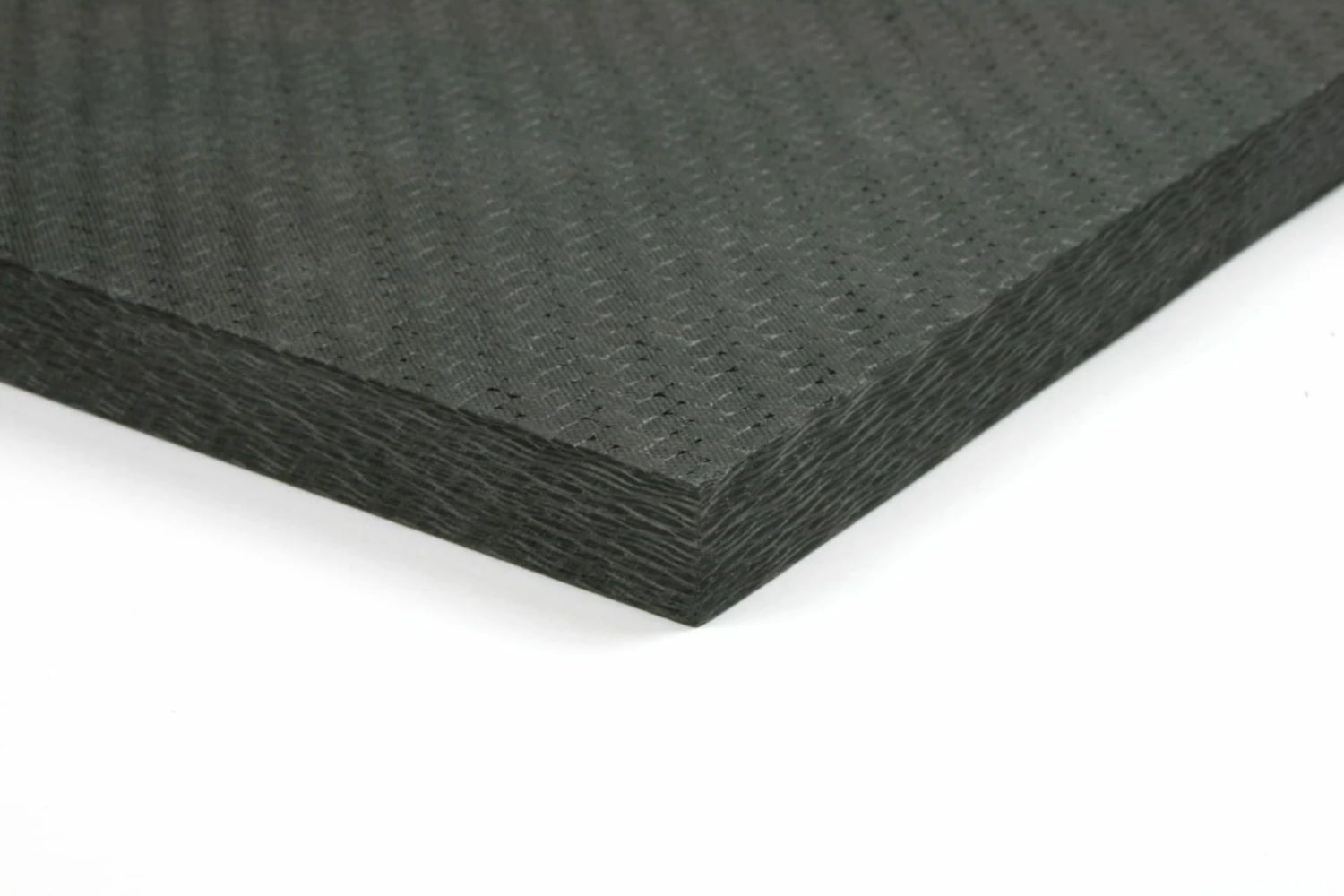

EconomyPlate™ Solid Carbon Fiber Sheet ~ 1/2″ X 24″ X 48″
Original price was: $318.00.$97.99Current price is: $97.99.
- Buy with confidence, backed by quality.
- Peace of Mind with Every Purchase
- Online assistance, always just a message away.
- Control the delivery date and try to deliver it in the fastest time
For less demanding applications where you can live without the optimized material properties of a quasi-isotropic lay-up, we have created EconomyPlate™. Our EconomyPlate™ sheets are comprised of orthotropic (non quasi-isotropic) laminates utilizing a twill weave at 0°/90° orientation, while maintaining a symmetrical and balanced laminate. As with all DragonPlate solid carbon fiber sheets, EconomyPlate™ is composed entirely of a tough and rigid carbon reinforced epoxy matrix. CNC machining is also available with EconomyPlate™ solid carbon fiber sheets.
| Finish | Texture/Texture, Gloss/Texture, Matte/Texture |
|---|---|
| Add Face Sheet (one side) | None, Red Kevlar/Carbon, Red Kevlar, Blue Kevlar/Carbon, Yellow Kevlar/Carbon, Harness-Satin 4, Twill Narrow Weave |
| Sheet Size | 24" x 48" |
| Sheet Thickness | 1/2" |
| Ply Orientation | Woven 0/90 |
| Max Temperature | 140 F |
| Fiber Modulus | Standard (33 Msi) |
| Composition | Solid CF (All Woven) |
| Approx. Weight | 29.426 lb |
| Approx. Density | 0.052 lb/in3 |
