EconomyPlate Solid Carbon Fiber Sheet ~ 1/32″ X 12″ X 24″
Original price was: $64.97.$45.48Current price is: $45.48.
- Buy with confidence, backed by quality.
- Peace of Mind with Every Purchase
- Online assistance, always just a message away.
- Control the delivery date and try to deliver it in the fastest time

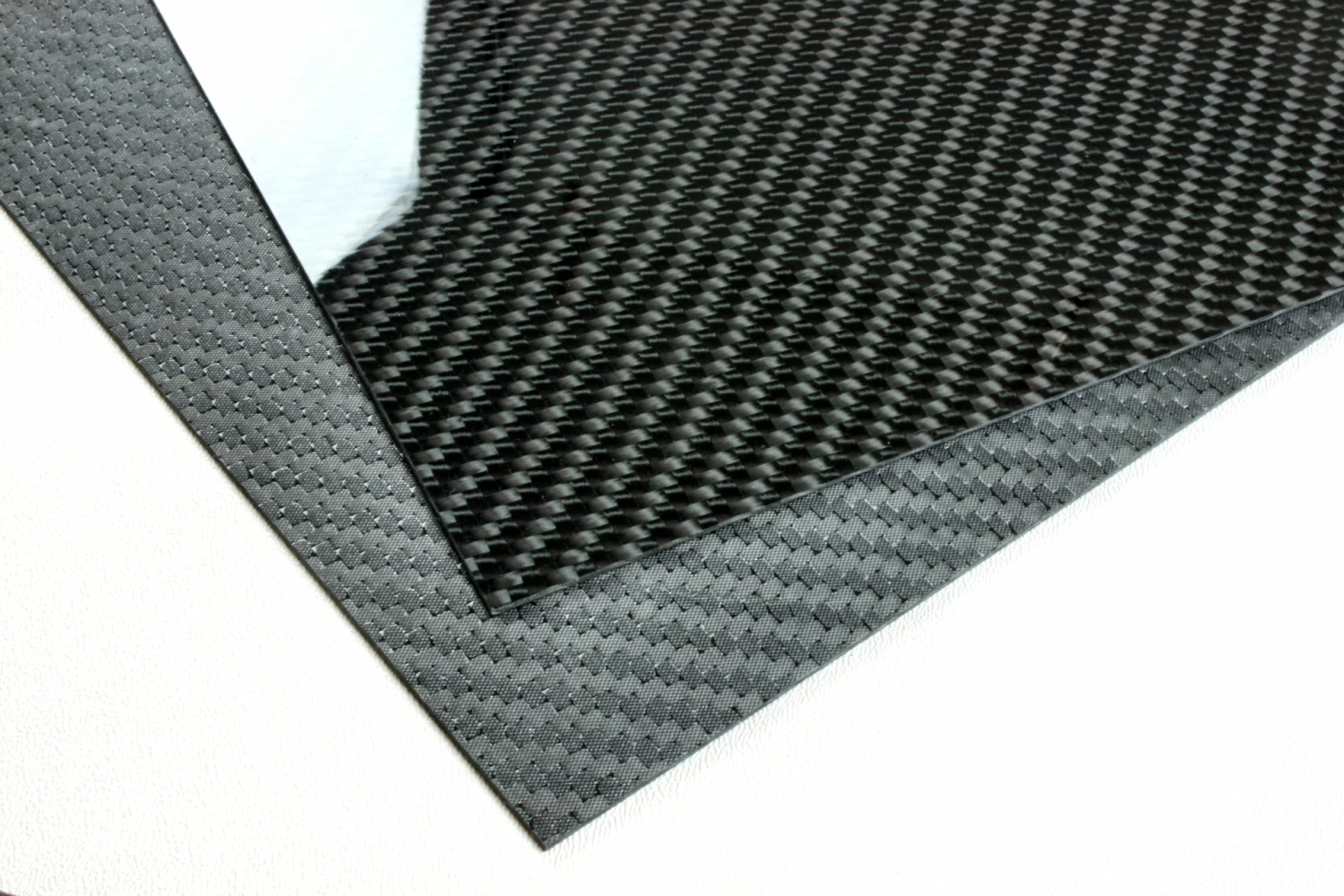

For less demanding applications where you can live without the optimized material properties of a quasi-isotropic lay-up, we have created EconomyPlate. Our EconomyPlate sheets are comprised of orthotropic (non quasi-isotropic) laminates utilizing a twill weave at 0/90 orientation, while maintaining a symmetrical and balanced laminate. For this sheet size, we offer twill high gloss, matte or textured finish on one side and a textured finish on the other side providing an excellent bonding surface. As with all DragonPlate solid carbon fiber sheets, EconomyPlate is composed entirely of a tough and rigid carbon reinforced epoxy matrix. CNC machining is also available with EconomyPlate solid carbon fiber sheets.
| Finish | Gloss/Texture, Matte/Texture, Texture/Texture |
|---|---|
| Sheet Size | 12" x 24" |
| Sheet Thickness | 1/32" |
| Ply Orientation | Woven 0/90 |
| Max Temperature | 140 F |
| Fiber Modulus | Standard (33 Msi) |
| Composition | Solid CF (All Woven) |
| Approx. Weight | 0.544 lb |
| Approx. Density | 0.052 lb/in3 |
