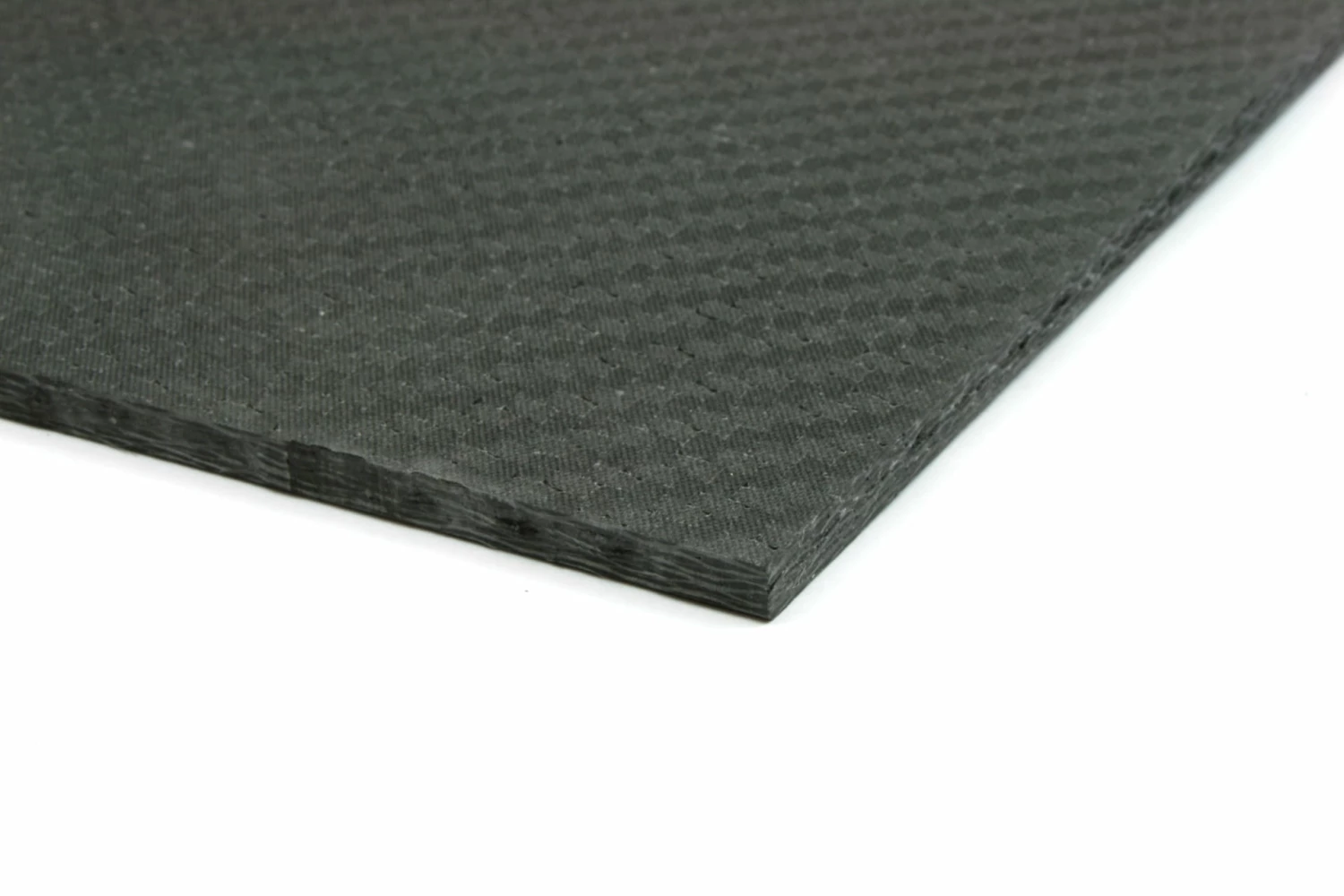

EconomyPlate™ Solid Carbon Fiber Sheet ~ 1/4″ X 24″ X 24″

Original price was: $320.00.Current price is: $97.99.

SKU: ZHJHZ 1704852084 Categories: Carbon Fiber Sheets and Plates, EconomyPlate™ Carbon Fiber Sheets Tag: DragonPlate

Buy with confidence, backed by quality.
Peace of Mind with Every Purchase
Online assistance, always just a message away.
Control the delivery date and try to deliver it in the fastest time

For less demanding applications where you can live without the optimized material properties of a quasi-isotropic lay-up, we have created EconomyPlate™. Our EconomyPlate™ sheets are comprised of orthotropic (non quasi-isotropic) laminates utilizing a twill weave at 0°/90° orientation, while maintaining a symmetrical and balanced laminate. Instead of the standard gloss DragonPlate finish, a textured finish is supplied on both sides to keep the price low, while offering an excellent bonding surface. As with all DragonPlate solid carbon fiber sheets, EconomyPlate™ is composed entirely of a tough and rigid carbon reinforced epoxy matrix. CNC machining is also available with EconomyPlate™ solid carbon fiber sheets.

Finish	Texture/Texture, Gloss/Texture, Matte/Texture
Sheet Size	24" x 24"
Sheet Thickness	1/4"
Ply Orientation	Woven 0/90
Max Temperature	140 F
Fiber Modulus	Standard (33 Msi)
Composition	Solid CF (All Woven)
Approx. Weight	7.041 lb
Approx. Density	0.052 lb/in3
