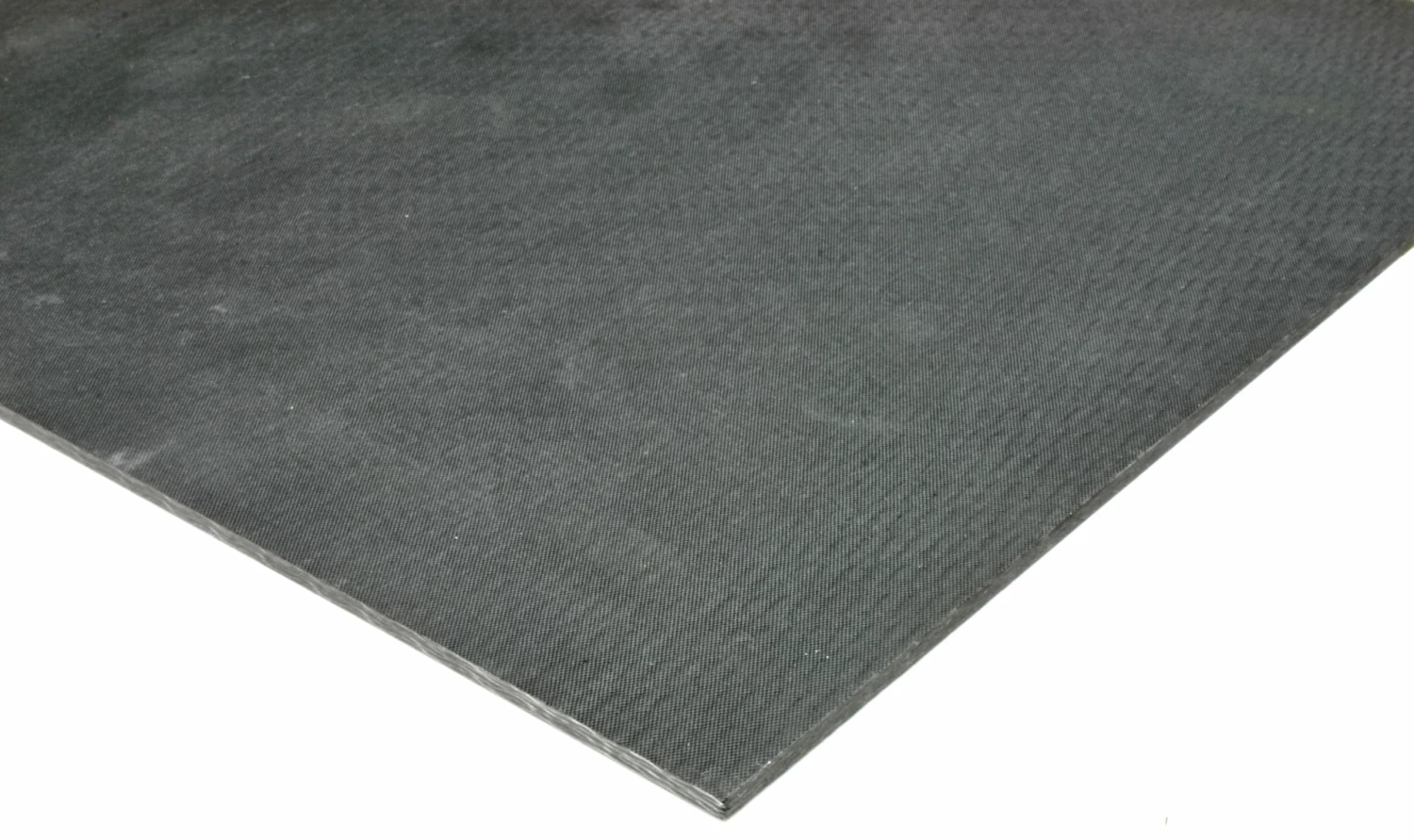

High Temperature Carbon Fiber Prepreg Sheet – 24″ X 36″ X 0.075″
Original price was: $400.00.$96.99Current price is: $96.99.
- Buy with confidence, backed by quality.
- Peace of Mind with Every Purchase
- Online assistance, always just a message away.
- Control the delivery date and try to deliver it in the fastest time
Dragonplate high temperature carbon fiber sheets are comprised of a special carbon fiber/phenolic prepreg laminate that is formulated and processed to give excellent properties at temperatures much higher than standard epoxy products can withstand. These high temperature sheets maintain most of their rigidity up to 500 F, and can withstand short durations at much higher temperatures. Due to the phenolic resin system, these sheets are very flame retardant, and can survive short duration contact by direct flame. After long duration direct flame contact, mechanical properties will be reduced, but the shape is maintained.
Sheet finish is textured on both sides.
| Sheet Size | 24" x 36" |
|---|---|
| Sheet Thickness | 0.075" |
| Ply Orientation | Woven 0/90 |
| Max Temperature | 500 F |
| Fiber Modulus | Standard (33 Msi) |
| Finish | Texture/Texture |
| Composition | Solid CF (Phenolic Prepreg) |
| Approx. Weight | 3.816 lb |
| Approx. Density | 0.057 lb/in3 |
