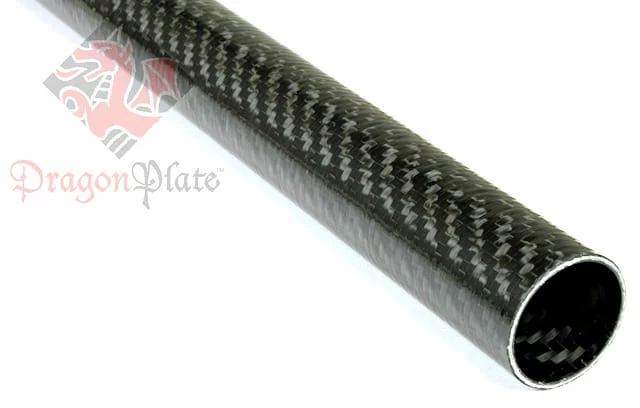

Kevlar Core Carbon Fiber Round Tube ~ 0.5″ ID X 24″
Original price was: $60.16.$42.11Current price is: $42.11.
- Buy with confidence, backed by quality.
- Peace of Mind with Every Purchase
- Online assistance, always just a message away.
- Control the delivery date and try to deliver it in the fastest time
The construction our of Kevlar core carbon fiber tubes is identical to our standard twill roll-wrapped tubes except that the uni-directional plies are replaced with prepreg woven Kevlar. By creating a sandwich laminate where carbon fiber comprises the material layers on the inside and outside of these tubes, Kevlar core carbon fiber tubes maintain most of the stiffness of our standard roll-wrapped twill prepreg tubes, but with greatly increased impact and puncture toughness due to the all Kevlar core. Wall thickness is 1/16″ with a gloss finish.
Contact us for a quote on additional wall thicknesses.
Also see other Kevlar Composites we manufacture.
| Core Material | Kevlar |
|---|---|
| Length | 24" |
| Wall Thickness | 0.0625" |
| Shape | Round |
| Inner Diameter | 0.5" |
| Outside Diameter | 0.625" |
| Tube Finish | Gloss |
| Ply Orientation | Woven 0/90 |
| Max Temperature | 250 F |
| Composition | CF (Woven) and Core |
| Approx. Weight | 0.127 lbs |
| Approx. Density | 0.048 lb/in3 |
