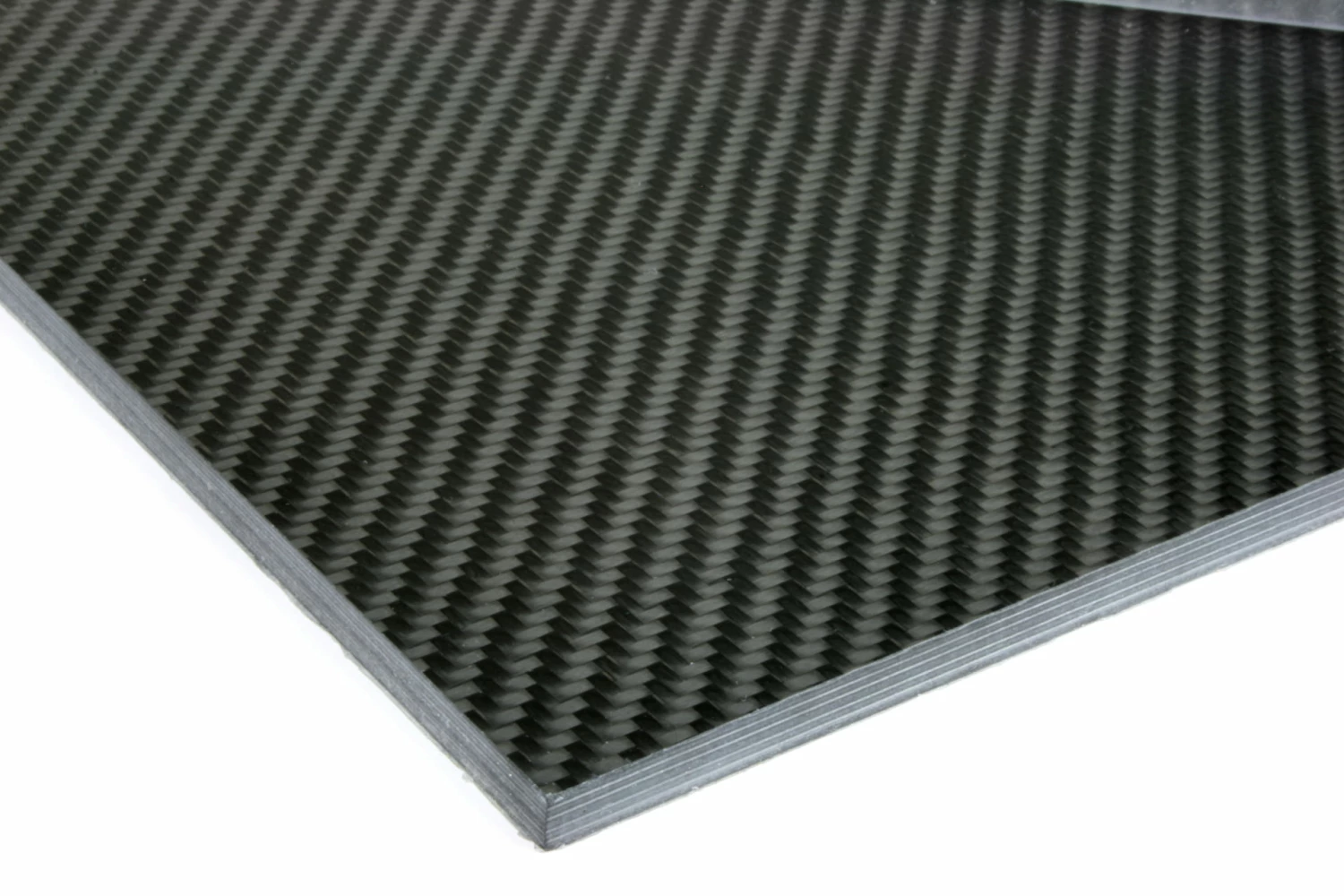

Quasi-isotropic Carbon Fiber Twill/Uni Sheet ~ 1/4″ X 6″ X 6″
Original price was: $61.32.$42.92Current price is: $42.92.
- Buy with confidence, backed by quality.
- Peace of Mind with Every Purchase
- Online assistance, always just a message away.
- Control the delivery date and try to deliver it in the fastest time
By adding +45 and -45 plies to the 0/90 degree uni sheets, this carbon fiber sheet has more uniform mechanical properties than the 0/90 degree sheets. For applications where off-axis or torsional loads may be present, quasi-isotropic carbon fiber sheets provide near axis-symmetry stiffness properties, allowing greater adaptability to intricate parts and complex load patterns.
As for all of our carbon fiber laminates, we recommend preparing the surfaces by lightly sanding before bonding or painting.
- Fiber Uni: UTS 700 (34 MSI)
- Resin Uni: NCT 304-1
- Fiber Volume Uni: 55%
- Resin Twill: NB301
- Fiber Volume Twill: 48%
- Tg: 250° f
| Sheet Size | 06" x 06" |
|---|---|
| Sheet Thickness | 1/4" |
| Ply Orientation | Woven 0/90 and UD 0 and 90 and ±45 |
| Max Temperature | 250 F |
| Fiber Modulus | Standard (33 Msi) |
| Finish | Satin/Satin |
| Composition | Solid CF (Woven and Uni Directional) |
| Approx. Weight | 0.522 lb |
| Approx. Density | 0.058 lb/in3 |
