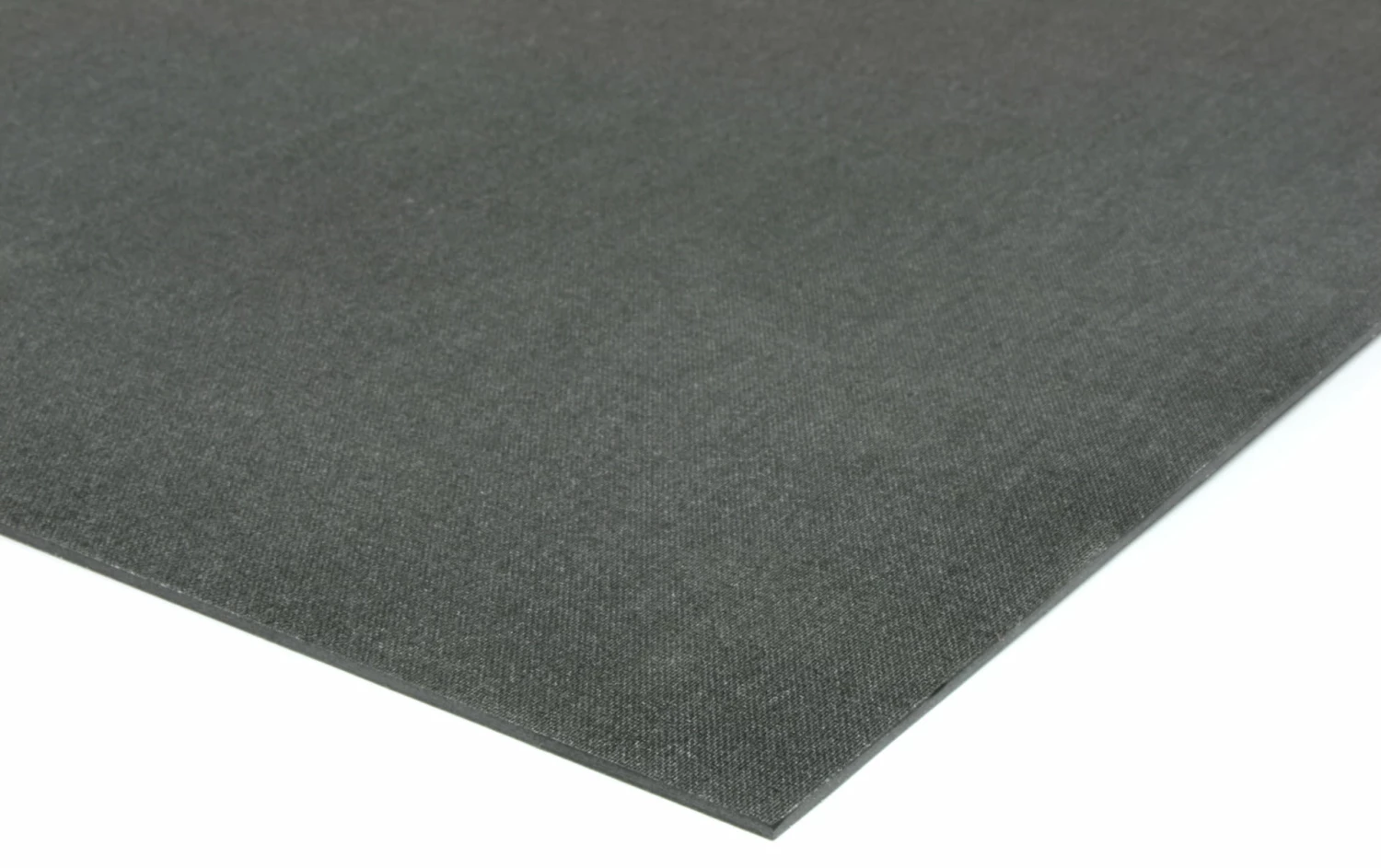

Quasi-isotropic Carbon Fiber Uni Sheet ~ 2mm X 12″ X 12″
Original price was: $109.03.$76.32Current price is: $76.32.
- Buy with confidence, backed by quality.
- Peace of Mind with Every Purchase
- Online assistance, always just a message away.
- Control the delivery date and try to deliver it in the fastest time
By adding +45 and -45 plies to the 0/90 degree uni sheets, this carbon fiber sheet has more uniform mechanical properties than the other two options. For applications where off-axis or torsional loads may be present, quasi-isotropic carbon fiber sheets provide near axis-symmetry stiffness properties, allowing greater adaptability to intricate parts and complex load patterns.
As for all of our carbon fiber laminates, we recommend preparing the surfaces by lightly sanding before bonding or painting.
- Fiber: UTS 700 (34 MSI)
- Resin: NLT 304-1
- Fiber Volume: 55%
- Tg: 250° f
| Sheet Size | 12" x 12" |
|---|---|
| Sheet Thickness | 2mm |
| Ply Orientation | UD 0 and 90 and ±45 |
| Max Temperature | 250 F |
| Fiber Modulus | Standard (33 Msi) |
| Finish | Texture/Texture |
| Composition | Solid CF (All Uni Directional) |
| Approx. Weight | 0.635 lb |
| Approx. Density | 0.056 lb/in3 |
